(90.150.BJ[05]) - GUARD INSTALL (CANOPY)

Запчасти Case CX55B (90.150.BJ[05]) - GUARD INSTALL (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

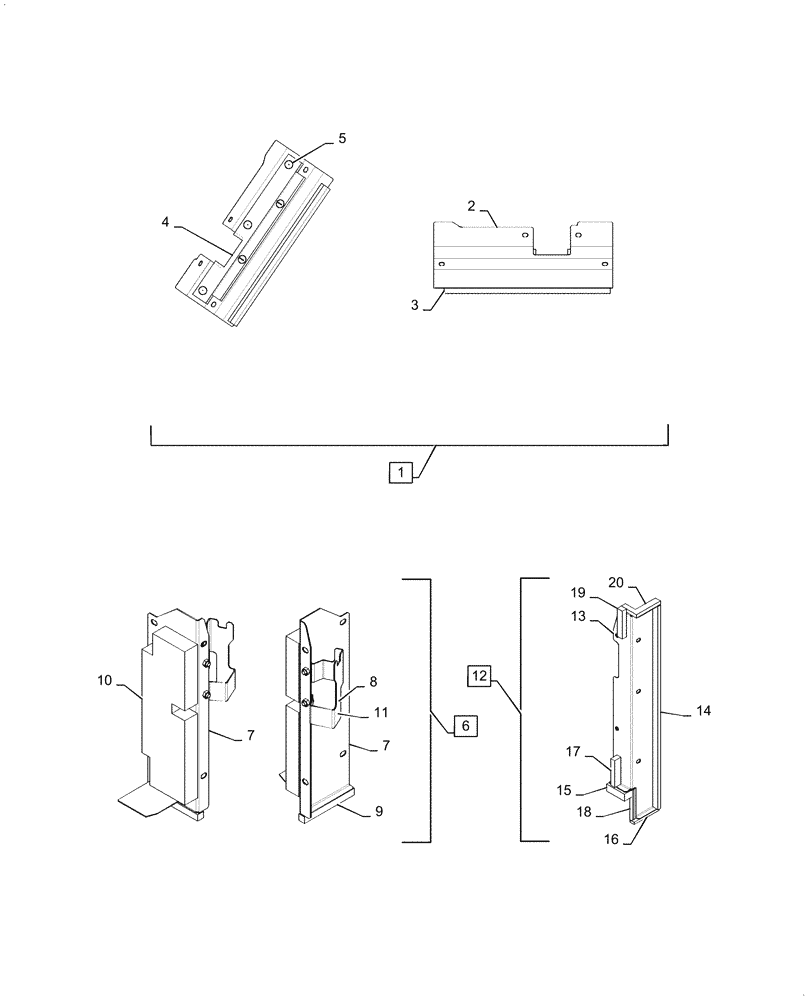

Схема запчастей Case CX55B - (90.150.BJ[05]) - GUARD INSTALL (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS
16
6
5
15
13
9
20
10
14
17
12
7
7
19
3
11
8
1
4
18
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Guard Install, PS21C00015F1

1шт.

1

PS22C01064F1

GUARD

Assy, Incl 2 - 5

1шт.

2

PS22C01065P1

GUARD

1шт.

3

PS22C01046P1

RUBBER STRIP

1шт.

4

PS22C01067P1

INSULATION

1шт.

5

2418T8864

WASHER

5шт.

6

PS21C01396F1

GUARD

Assy, Incl 7 - 11

1шт.

7

PS21C01482P1

GUARD

1шт.

8

PS21C01492P1

PLATE

1шт.

9

PS21C01405P1

RUBBER STRIP

1шт.

10

PS21C01407P1

INSULATION

1шт.

11

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

12

PS21C01401F1

GUARD

Assy, Incl 13 - 20

1шт.

13

PS21C01489P1

GUARD

1шт.

14

PS21C01208P1

RUBBER STRIP

1шт.

15

PS21C01410P1

RUBBER STRIP

1шт.

16

PS21C01211P1

RUBBER STRIP

1шт.

17

PS21C01212P1

RUBBER STRIP

1шт.

18

2427P1836D45

WEATHERSTRIP

1шт.

19

PS21C01430P1

RUBBER STRIP

1шт.

20

PS21C01495P1

RUBBER STRIP

1шт.
