(90.150.BJ[03]) - GUARD INSTALL (CAB)

Запчасти Case CX55B (90.150.BJ[03]) - GUARD INSTALL (CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS

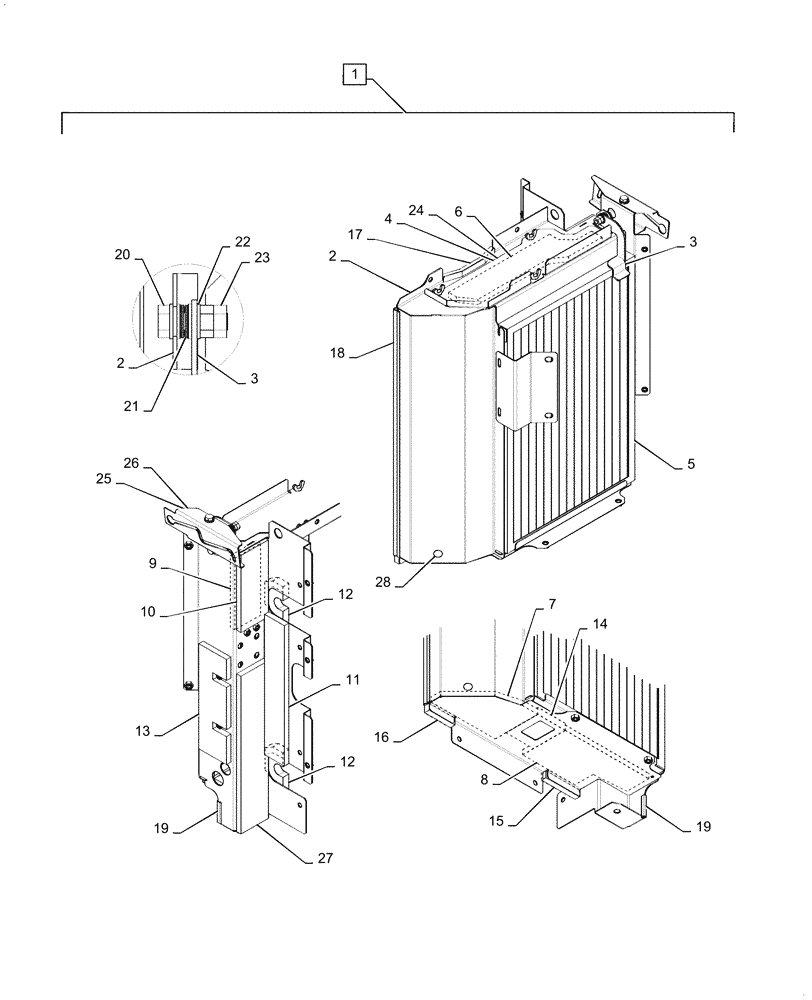

Схема запчастей Case CX55B - (90.150.BJ[03]) - GUARD INSTALL (CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS
27
18
12
21
11
12
23
19
17
25
10
20
8
13
1
5
6
2
3
22
16
26
14
2
15
7
9
3
19
4
28
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Guard Install, PS21C00001F1

1шт.

1

PS22C01142F1

GUARD

Assy, Incl 2 - 28

1шт.

2

PS22C01143P4

DUCT

1шт.

3

PS22C01148P1

PLATE

1шт.

4

PS22C01149P1

PLATE

1шт.

5

PS50V01008P1

FILTER

1шт.

6

PS22C01155P1

INSULATION

1шт.

7

PS22C01156P1

INSULATION

1шт.

8

PS22C01157P1

INSULATION

1шт.

9

PS22C01163P1

INSULATION

1шт.

10

PS22C01164P1

INSULATION

1шт.

11

PS22C01040P1

INSULATION

1шт.

12

PS22C01198P1

RUBBER STRIP

2шт.

13

PS22C01158P1

INSULATION

1шт.

14

PS22C01190P1

RUBBER STRIP

1шт.

15

PS22C01051P1

RUBBER STRIP

1шт.

16

PS22C01052P1

RUBBER STRIP

1шт.

17

PS22C01053P1

RUBBER STRIP

1шт.

18

YZ21C01044D8

WEATHERSTRIP

1шт.

19

PM22C01020DA

SOFT TRIM

1шт.

20

ZS18C10035

SCREW,Hex, M10 x 35mm

Cap

1шт.

21

R16T0137D3

WASHER

4шт.

22

ZW16P10000

WASHER

4шт.

23

ZN18C10008

NUT

2шт.

24

YN21C01752P1

BOLT

3шт.

25

PS22C01197P1

PLATE

1шт.

26

ZM73C10016

BOLT,M10x16mm - Course Thread

Sems

2шт.

27

PS22C01160P1

INSULATION

1шт.

28

YT02C01567D1

PLATE

1шт.
