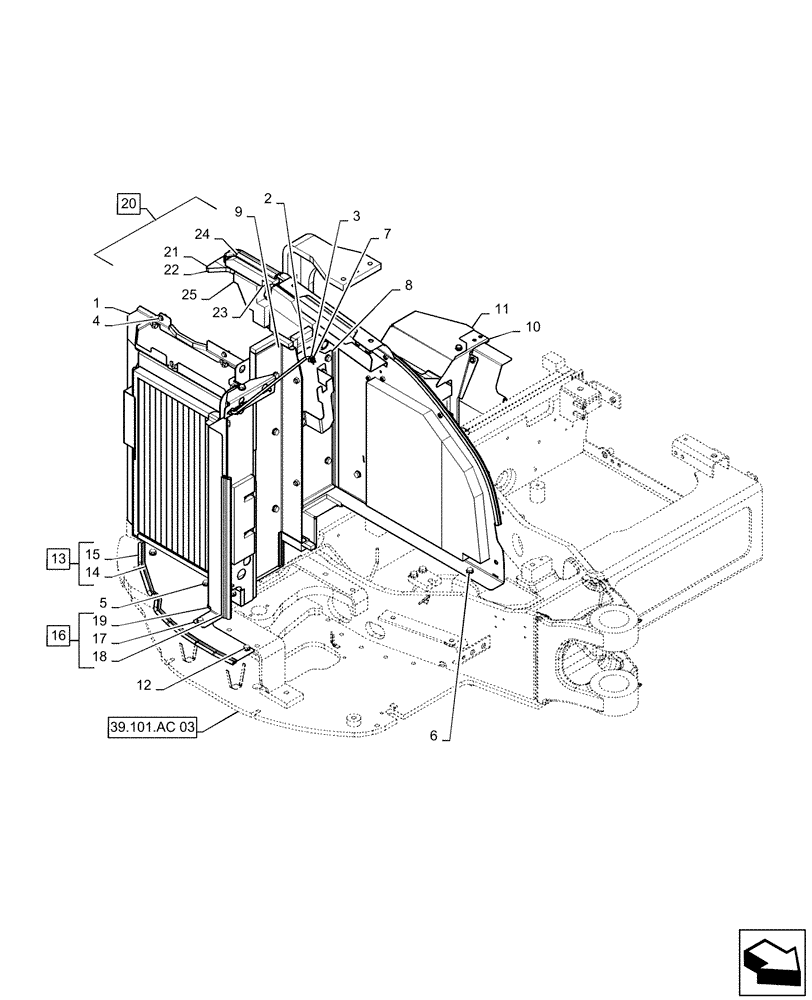

Запчасти Case CX55B (90.150.BJ[02]) - GUARD INSTALL (CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

Guard Install, PS21C00001F1

1шт.

1

PS22C01142F1

GUARD

Assy

1шт.

2

PS21C01382P1

STAY

1шт.

3

ZW16P08000

WASHER

1шт.

4

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

8шт.

5

ZM73C10016

BOLT,M10x16mm - Course Thread

Sems

24шт.

6

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

18шт.

7

2419R9D2

COTTER PIN

1шт.

8

PS21C01396F1

GUARD

Assy

1шт.

9

PS21C01401F1

GUARD

Assy

1шт.

10

PS21C01318P1

PLATE

1шт.

11

PS21C01320P1

PLATE

1шт.

12

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

3шт.

13

PS21C01327F1

GUARD

Assy, Incl 14, 15

1шт.

14

PS21C01329P2

PLATE

1шт.

15

PM21C01152DC

WEATHERSTRIP

1шт.

16

PS21C01330F1

GUARD

Assy, Incl 17 - 19

1шт.

17

PS21C01332P2

PLATE

1шт.

18

PH21C01136DN

WEATHERSTRIP

1шт.

19

YR21C01168DF

WEATHERSTRIP

1шт.

20

PS21C01354F1

BRACKET

Assy, Incl 21 - 25

1шт.

21

PS21C01365P2

BRACKET

1шт.

22

PS21C01422P1

RUBBER STRIP

1шт.

23

PS21C01424P1

RUBBER STRIP

1шт.

24

YJ21C01080D5

INSULATING PANEL

Strip, Weather

1шт.

25

PS21C01433P1

INSULATION

1шт.
