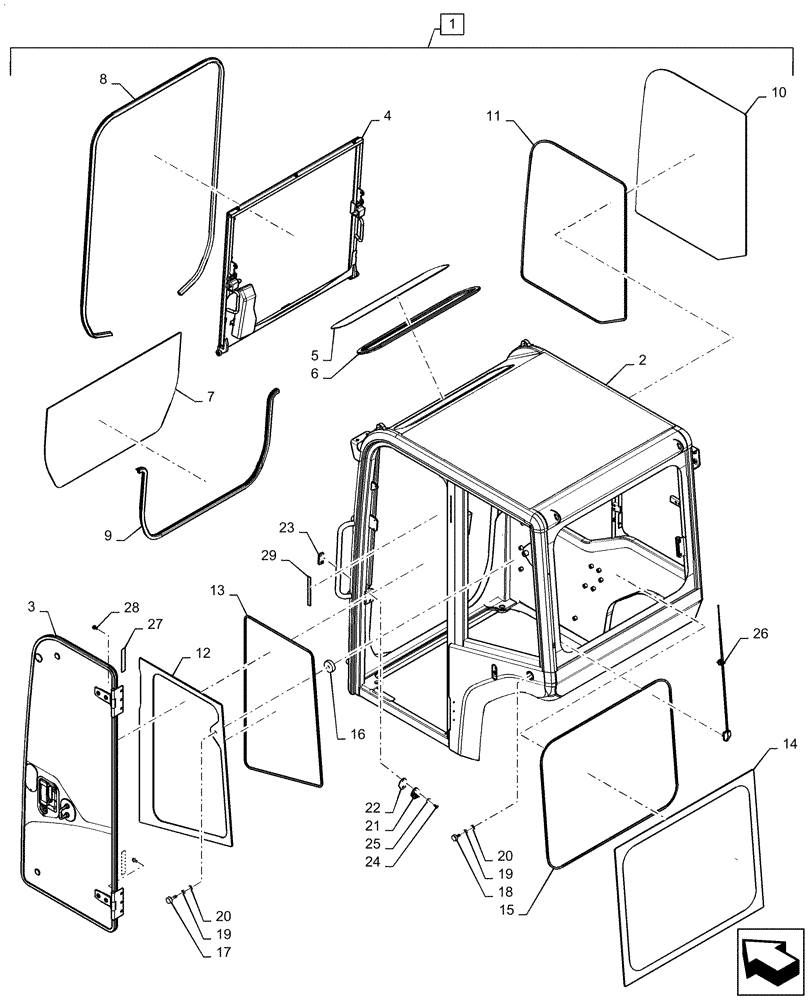

Запчасти Case CX55B (90.150.AB[01]) - CAB ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PS02C00002F1

CAB

Incl 2 - 29

1шт.

2

PS02C00005P1

CAB

1шт.

3

PS51C00001F1

DOOR

Assy, Cab, see fig 90.154.AA(01) for Inner Parts and Glass

1шт.

4

PS50C00001F1

WINDOW FRAME

Assy

1шт.

5

YT02C01493P1

GLASS

1шт.

6

PS02C01010P1

RUBBER STRIP

1шт.

7

PY02C01147P1

GLASS

1шт.

8

PS02C01097D2

SEAL

1шт.

9

PS02C01097D1

SEAL

1шт.

10

PS02C01013P1

GLASS

797mm x 722mm, Tempered Glass

1шт.

11

PM02C01172DB

SEAL,7mm W x 4.8mm H x 2870mm L

1шт.

12

PY02C01148P1

GLASS

1шт.

13

PM02C01172D7

SEAL,7mm W x 4.8mm H x 3500mm L

1шт.

14

PY02C01149P1

GLASS

980mm x 750mm, Tempered Glass

1шт.

15

PM02C01172D1

SEAL,7mm W x 4.8mm H x 3000mm L

1шт.

16

PY02C01171P1

PACKING

1шт.

17

YR02C01503P1

STOP

3шт.

18

PY02C01175P1

PLUG

Stopper

1шт.

19

PY51C01061D1

NUT

2шт.

20

PY51C01062D1

WASHER

2шт.

21

YT51C01021P1

HOOK

1шт.

22

PY02C01305P1

SHIM

1шт.

23

PY02C01184P1

STOP

Striker

1шт.

24

YR02C01494P1

SCREW

Machine

2шт.

25

PY02C01185P1

WASHER

2шт.

26

YR54S00002P1

ANTENNA

1шт.

27

PY02C01187P1

DECAL

2шт.

28

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

10шт.

29

PY02C01348P1

PACKING

1шт.
