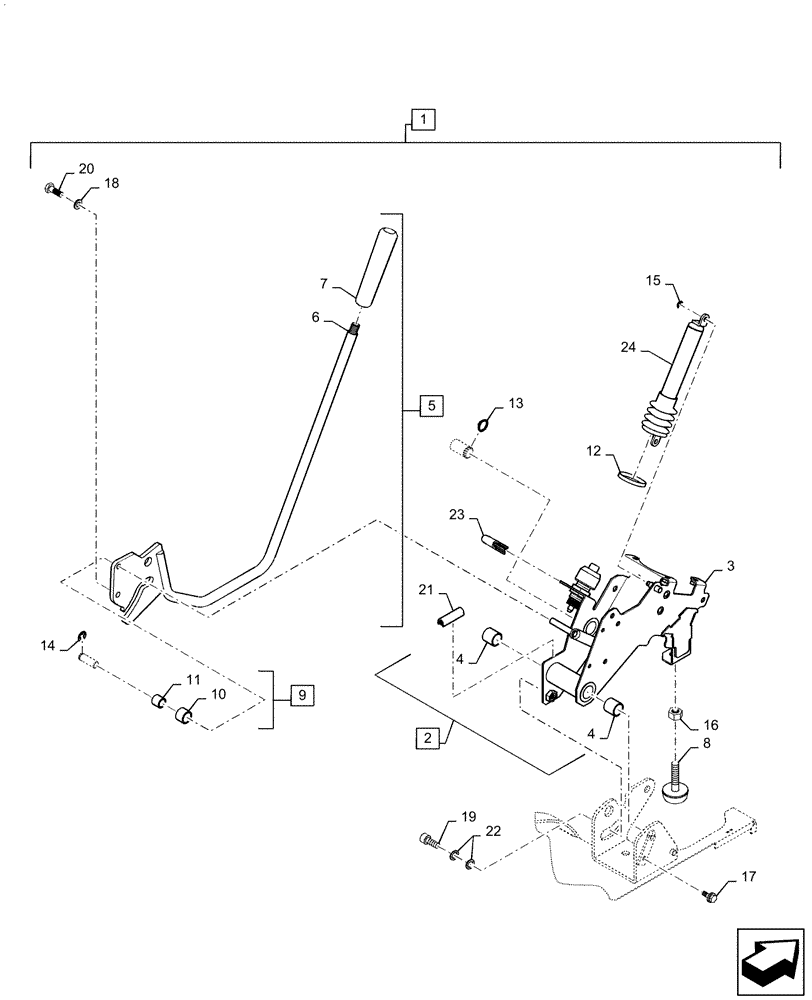

Запчасти Case CX55B (90.118.AC[06]) - CONTROL LEVER, LOCK (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PS03M00021F1

CONTROL

Box Assy, Incl 2 - 23

1шт.

2

PS03M01266F1

CONTROL

Box, Incl 3, 4

1шт.

3

PS03M01267P1

CONTROL

1шт.

4

2405R312D1620

BUSHING

3шт.

5

PS03M01270F1

LEVER

Assy, Incl 6, 7

1шт.

6

PS03M01271P1

LEVER

1шт.

7

PS03M01072P1

GRIP

1шт.

8

YN02C01823P1

STOP

1шт.

9

PW03M01392F1

ROLLER ASSY.,15mm OD x 15mm L

Incl 10, 11

1шт.

10

PW03M01391P1

ROLLER

1шт.

11

2405R312D1015

BUSHING

1шт.

12

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

Clip

1шт.

13

ZR16X01600

SNAP RING

1шт.

14

ZR36X00900

SNAP RING

1шт.

15

ZR36X00500

SNAP RING

2шт.

16

ZN17F10008

NUT

1шт.

17

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

1шт.

18

ZW16H08000

WASHER

1шт.

19

ZS28C08020

SCREW,Hex Socket Head, M8 x 20mm

Cap

1шт.

20

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

1шт.

21

YT02C01515D6

TRIM

1шт.

22

ZW26K08000

LOCK WASHER

2шт.

23

YT02C01515D4

SOFT TRIM

1шт.

24

LE03M01182F1

GAS STRUT

1шт.
