(90.118.AC[04]) - CONTROLS, OPERATORS, CAB

Запчасти Case CX55B (90.118.AC[04]) - CONTROLS, OPERATORS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

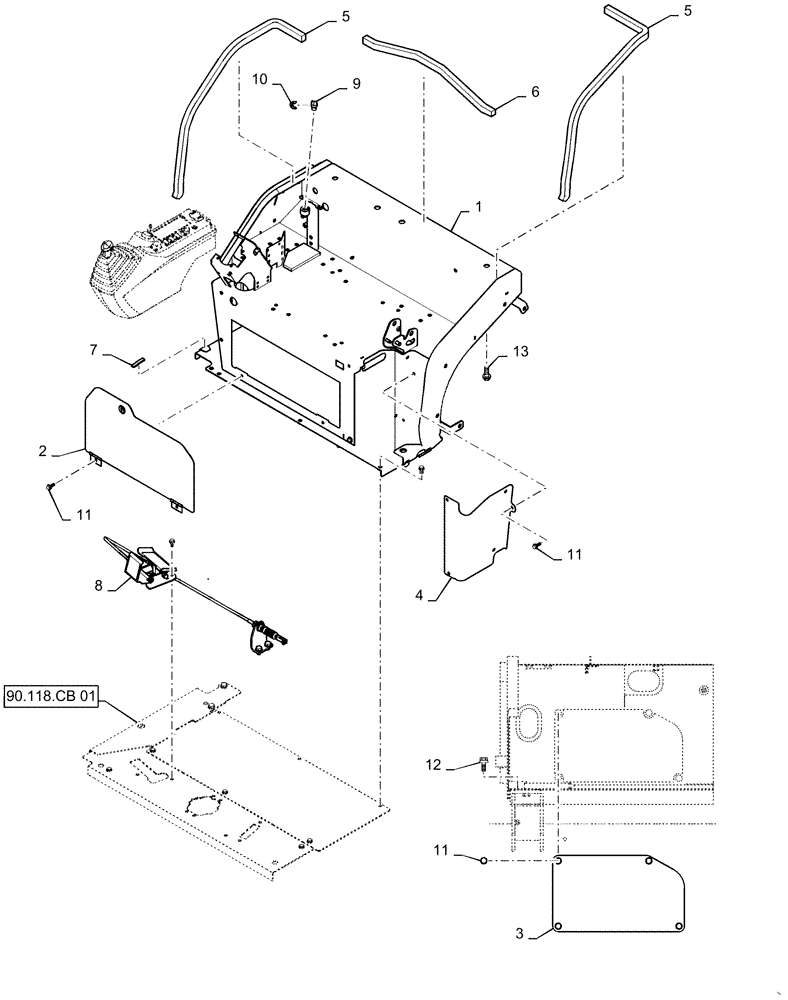

Схема запчастей Case CX55B - (90.118.AC[04]) - CONTROLS, OPERATORS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
8
6
3
9
11
11
4
13
5
1
12
90.118.cb 01
7
5
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Controls, Operators, Cab, PS03M00015F1

1шт.

1

PS10M01093F1

STAND

Assy

1шт.

2

PS10M01072F1

COVER

1шт.

3

PS03M01260F1

COVER

1шт.

4

PS03M01211P1

COVER

1шт.

5

PS10M01015P1

INSULATION

2шт.

6

PS10M01090P1

INSULATION

1шт.

7

PS03M01202P1

INSULATION

1шт.

8

PS55M00004F1

PEDAL

Install

1шт.

9

PY50S00004P2

SWITCH

(Used for Windshield Wiper Washer)

1шт.

10

PW17M01018P1

LABEL

1шт.

11

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

9шт.

12

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

1шт.

13

ZM73C10040

BOLT,M10x40mm - Course Thread

Sems

1шт.
