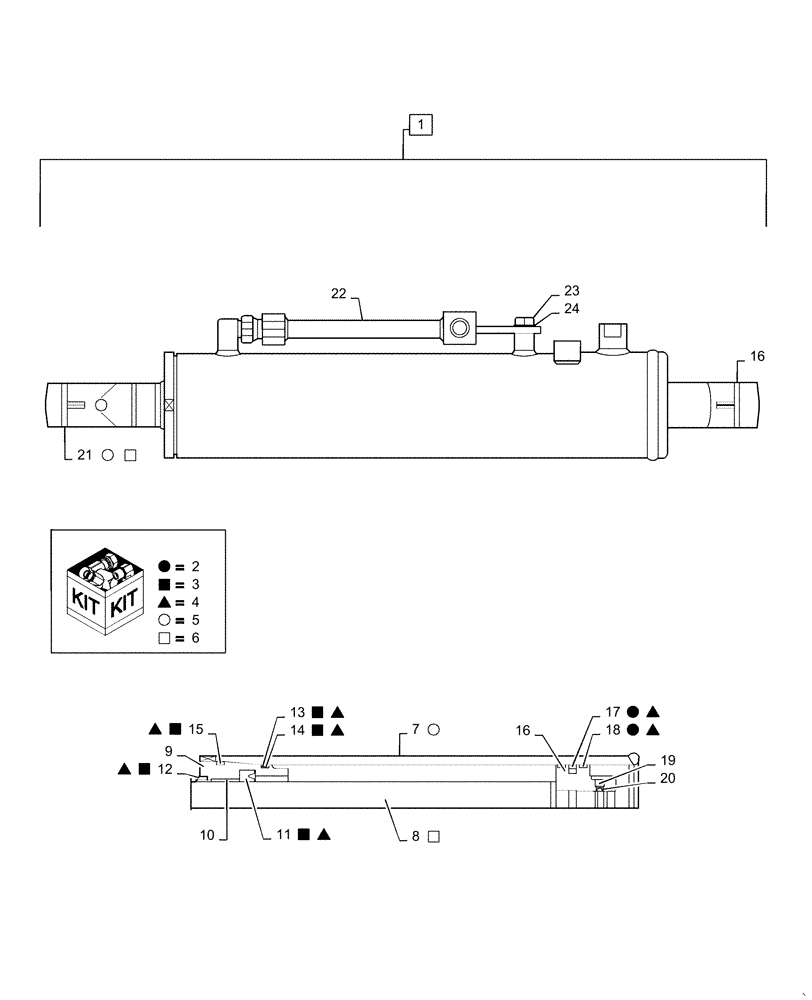

Запчасти Case CX55B (86.110.AF[04]) - CYLINDER (86) - DOZER

1

PY01V00073F1

HYDRAULIC CYLINDER

Incl 2 - 24

1шт.

2

2438U1116R200

SEAL PACKAGE

Repair Kit, Incl 17 (1), 18 (1)

1шт.

3

PY01V00073R200

KIT

Repair, Incl 11 - 15 (1)

1шт.

4

PH01V00006R100

REPAIR KIT

Incl 11 - 15 (1), 17 (1), 18 (1)

1шт.

5

PY01V00073R400

KIT

Repair, Incl 7 (1), 21 (1)

1шт.

6

PY01V00073R500

KIT

Repair, Incl 8 (1), 21 (1)

1шт.

7

NSS

NOT SOLD SEPARAT

Tube Assy, Incl in 5

1шт.

8

NSS

NOT SOLD SEPARAT

Piston Rod, Incl in 6

1шт.

9

PH01V00006S003

CYLINDER HEAD

1шт.

10

PW01V00010S004

BUSHING

1шт.

11

2438U635S3

RING

1шт.

12

PH01V00006S006

RING

1шт.

13

ZD12G08500

O-RING,84.40mm ID x 90.60mm OD x 3.10mm

1шт.

14

PH01V00006S008

BACK-UP RING

1шт.

15

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

16

2438U1116S16

JACK PISTON

1шт.

17

2438U715S24

RING

Seal

1шт.

18

2438U1116S18

RING

Slide

2шт.

19

2438U1057S16

SET SCREW

1шт.

20

2436U946S11

BALL

1шт.

21

PY01V00035S015

BUSHING

2шт.

22

PY01V00035S020

TUBE

Assy

1шт.

23

PY01V00073S017

BOLT

1шт.

24

PY01V00073S018

WASHER

1шт.
