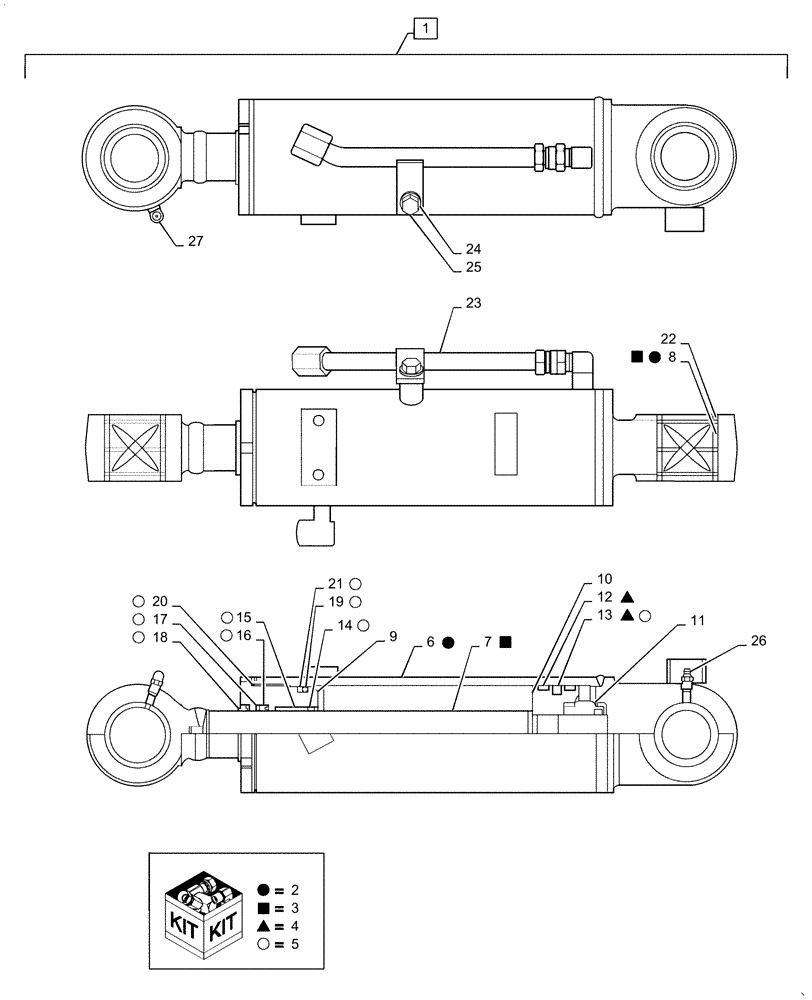

Запчасти Case CX55B (86.110.AF[02]) - CYLINDER, ASSY, DOZER (86) - DOZER

1

PS01V00005F1

HYDRAULIC CYLINDER

Dozer, Incl 2 - 27

1шт.

2

PS01V00005R100

KIT

Repair, Incl 6 (1), 8 (1)

1шт.

3

PS01V00005R200

KIT

Repair, Incl 7 (1), 8 (1)

1шт.

4

PS01V00005R300

KIT

Repair, Incl 13 (1), 12 (2)

1шт.

5

PS01V00005R400

KIT

Repair, Incl 16 - 21 (1)

1шт.

6

NSS

NOT SOLD SEPARAT

Tube Assy, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Rod,Piston, Incl in 3

1шт.

8

PS01V00005S003

BUSHING

2шт.

9

PS01V00005S004

CYLINDER HEAD

1шт.

10

PS01V00005S005

PISTON

1шт.

11

PH01V00031S006

NUT

Lock

1шт.

12

PH01V00027S010

RING

Wear

2шт.

13

PH01V00027S011

RING

1шт.

14

PH01V00034S011

CIRCLIP

Retaining

1шт.

15

PH01V00034S012

BUSHING

1шт.

16

PH01V00043S012

RING

1шт.

17

PH01V00034S014

RING

Back-Up

1шт.

18

PH01V00043S014

RING

1шт.

19

ZD12P08000

O-RING

1шт.

20

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

21

ZD85P08000

BACK-UP RING

1шт.

22

PH01V00034S020

RING

Seal, Dust

4шт.

23

PS01V00005S018

TUBE

1шт.

24

PH01V00027S023

WASHER

1шт.

25

ZS18C10016

SCREW,Hex, M10 x 16mm

Cap

1шт.

26

YT01V00035S018

FITTING

Nipple, Grease

1шт.

27

PH01V00042S024

NIPPLE

Grease

1шт.
