(84.912.AA[05]) - ARM GROUP

Запчасти Case CX55B (84.912.AA[05]) - ARM GROUP (84) - BOOMS, DIPPERS & BUCKETS

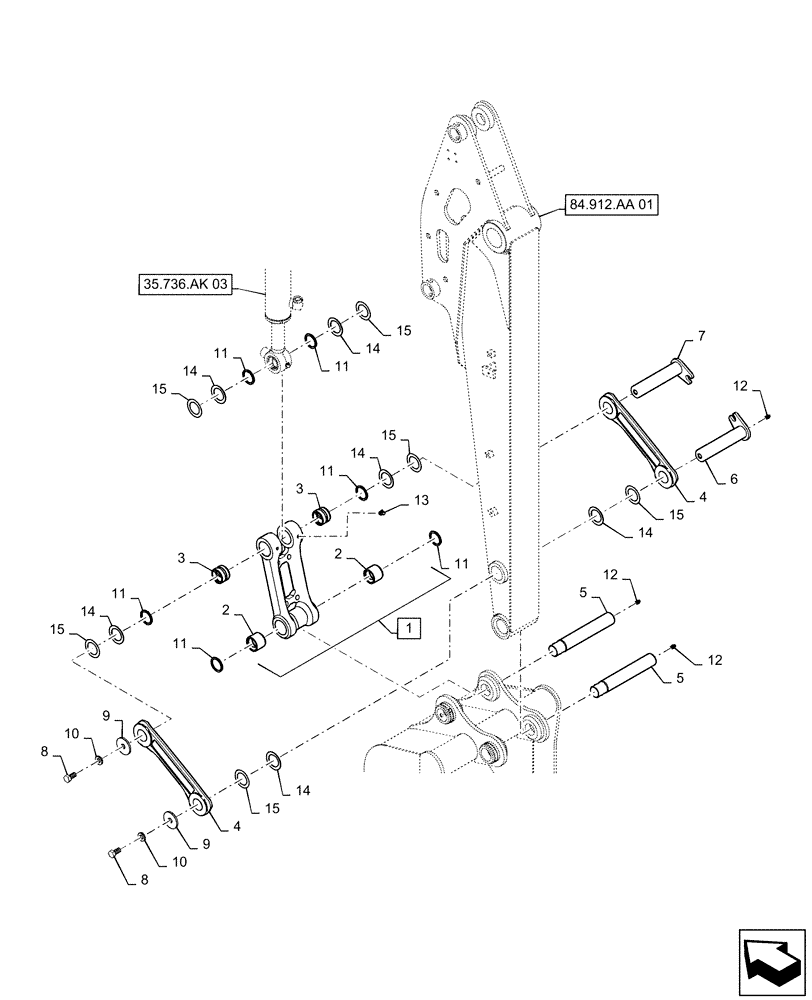

Схема запчастей Case CX55B - (84.912.AA[05]) - ARM GROUP (84) - BOOMS, DIPPERS & BUCKETS
15
8
12
7
13
4
10
15
11
14
11
12
15
9
6
5
9
11
14
2
15
3
8
14
11
2
12
11
10
15
5
14
3
4
84.912.aa 01
35.736.ak 03
1
15
14
11
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Arm Group, PS12B00006F1

1шт.

1

PS12B01001F1

LINK CONROD

Bucket, Incl 2, 3

1шт.

2

PH12B01067P1

BUSHING,45mm ID x 55mm OD x 42mm L

2шт.

3

PY12B01163P1

BUSHING,45mm ID x 55mm OD x 36.5mm L

2шт.

4

PH12B01101P2

LINK

2шт.

5

PH12B01203P1

PIN

2шт.

6

PY12B01158P1

PIN,45mm OD x 210.5mm L

1шт.

7

PY12B01159P1

PIN,45mm OD x 219.5mm L

1шт.

8

ZS18C16030

SCREW,Hex, M16 x 30mm

Cap

2шт.

9

PW12B01242P1

WASHER

2шт.

10

ZW16H16000

WASHER

2шт.

11

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

Seal

6шт.

12

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

3шт.

13

ZG91U02000

LUBE NIPPLE

Grease

2шт.

14

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

3шт.

15

YJ12B01097P1

SHIM,47mm ID x 70mm OD x 0.5mm Thk

7шт.
