(84.910.AC[01]) - ARM, MOUNTING

Запчасти Case CX55B (84.910.AC[01]) - ARM, MOUNTING (84) - BOOMS, DIPPERS & BUCKETS

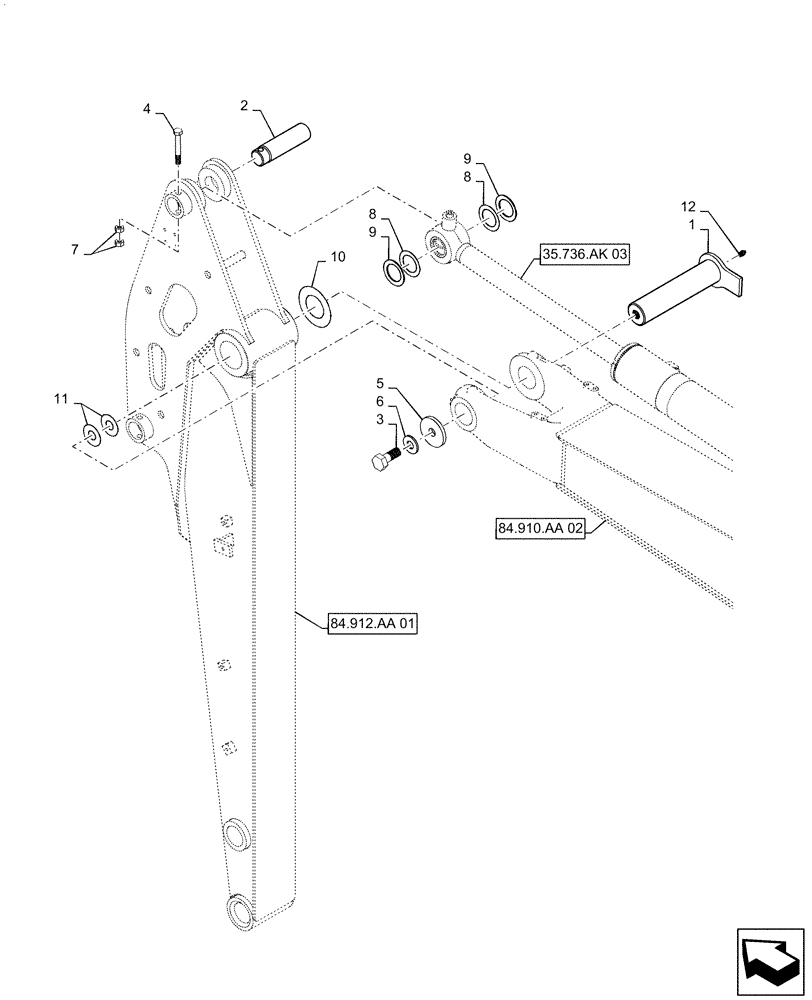

Схема запчастей Case CX55B - (84.910.AC[01]) - ARM, MOUNTING (84) - BOOMS, DIPPERS & BUCKETS
3
6
9
84.910.aa 02
1
2
11
35.736.ak 03
8
5
8
7
9
12
84.912.aa 01
10
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Arm Install, PS12B00007F1

1шт.

1

PS12B01031P1

PIN

1шт.

2

PS12B01024P1

PIN

1шт.

3

ZS18C24055

CAPSCREW,Hex, M24 x 55mm

1шт.

4

HS18C12090G1

SCREW

Cap

1шт.

5

PH12B01087P1

WASHER

1шт.

6

ZW16H24000

WASHER

1шт.

7

ZN18C12010

NUT

2шт.

8

YJ12B01043P1

SHIM,0.5mm Thk

2шт.

9

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

1шт.

10

PH12B01088P1

SHIM,0.5mm Thk

1шт.

11

PH12B01115P1

SHIM,0.5mm Thk

2шт.

12

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

1шт.
