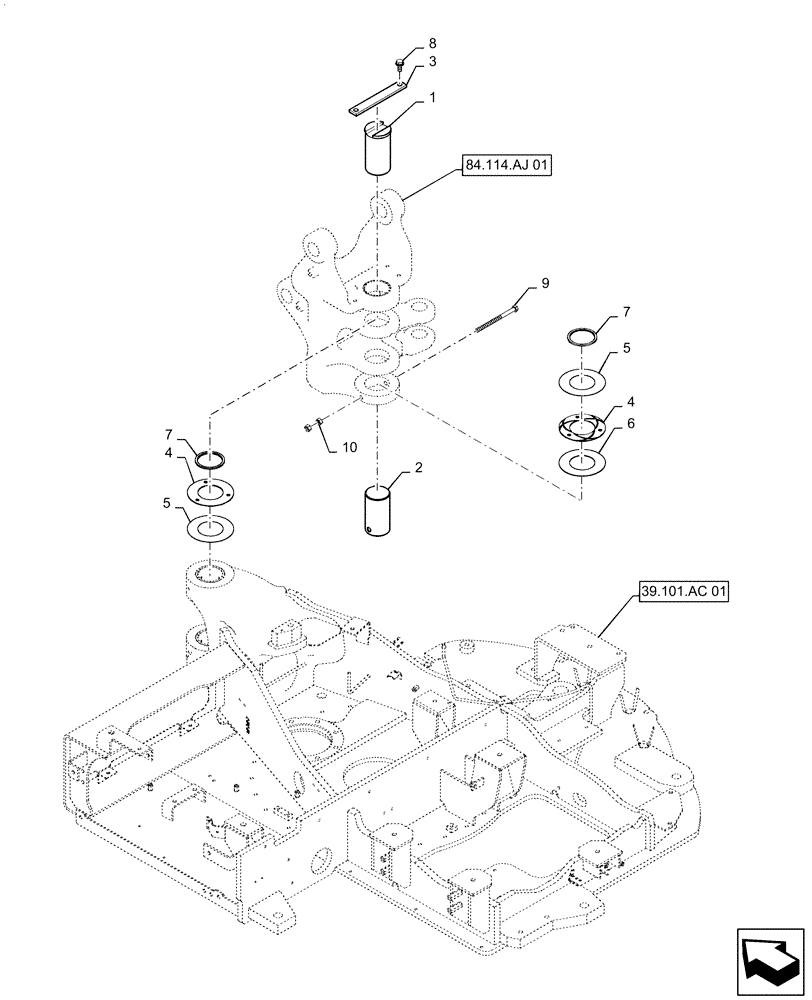

Запчасти Case CX55B (84.114.AJ[02]) - SWING CARRIAGE, BRACKET (84) - BOOMS, DIPPERS & BUCKETS

.

Bracket Install, Swing, PS02B00010F1

1шт.

1

PS02B01030P1

PIN

1шт.

2

PS02B01031P1

PIN

1шт.

3

PY02B01177P1

PLATE

1шт.

4

PH02B01050P1

WASHER

2шт.

5

PH02B01051P1

WASHER

2шт.

6

PH02B01066P1

SHIM,0.5mm Thk

1шт.

7

2445R138D7

SEAL,80mm ID x 95mm OD x 4mm Thk

Dust

2шт.

8

ZM73C12030

BOLT,M12x30mm - Course Thread

Sems

2шт.

9

HS18C12170G1

SCREW

Cap

1шт.

10

ZN18C12010

NUT

2шт.
