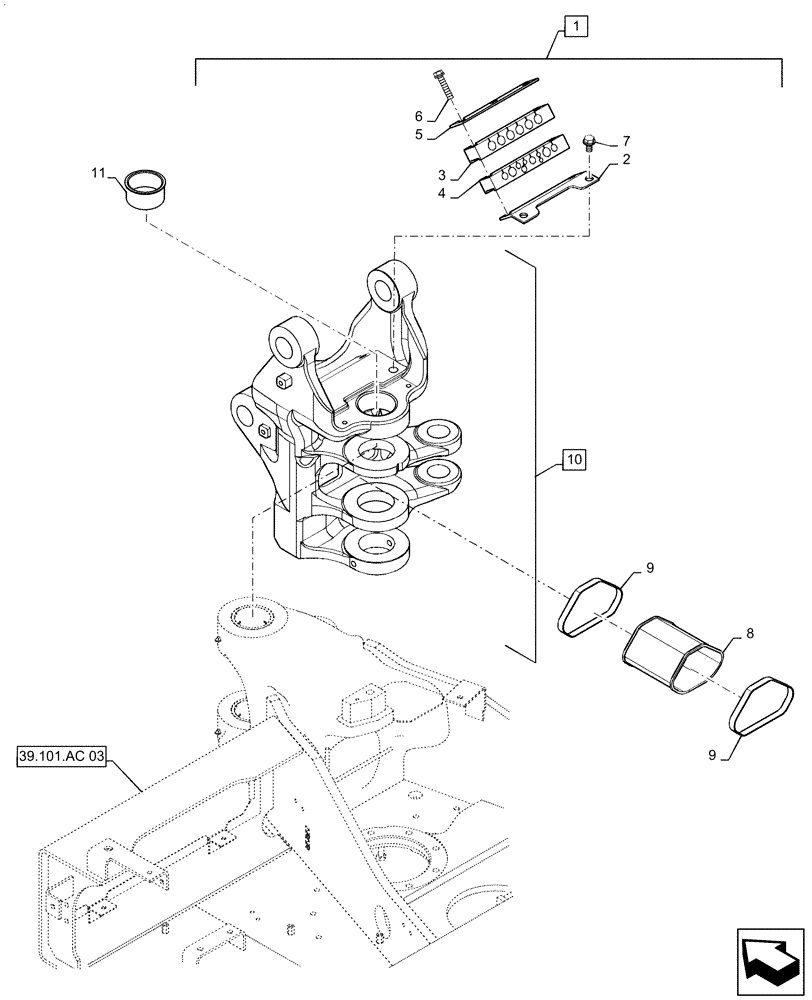

Запчасти Case CX55B (84.114.AJ[01]) - BRACKET, SWING CARRIAGE (84) - BOOMS, DIPPERS & BUCKETS

.

Bracket Group, Swing, PS02B00030F1

1шт.

1

PS02B00013F1

BRACKET

Group, Swing, Incl 2 - 10

1шт.

2

PS02B01037P1

BRACKET

1шт.

3

PS02B01042P1

RUBBER STRIP

1шт.

4

PS02B01043P1

RUBBER STRIP

1шт.

5

PS02B01039P1

PLATE

1шт.

6

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.

7

ZM73C12025

BOLT,M12x25mm - Course Thread

Sems

2шт.

8

PY02B01299P1

GUIDE

Grommet

1шт.

9

PY01P01043D8

CABLE TIE,102mm L

Clip

2шт.

10

PS02B00024F1

BRACKET

Assy, Swing, Incl 11

1шт.

11

PY02B01146P1

BUSHING,80mm ID x 90mm OD x 40.5mm L

1шт.
