(55.785.AS[02]) - HARNESS, ASSY, CAB, MONITOR - LIQUID CRYSTAL

Запчасти Case CX55B (55.785.AS[02]) - HARNESS, ASSY, CAB, MONITOR - LIQUID CRYSTAL (55) - ELECTRICAL SYSTEMS

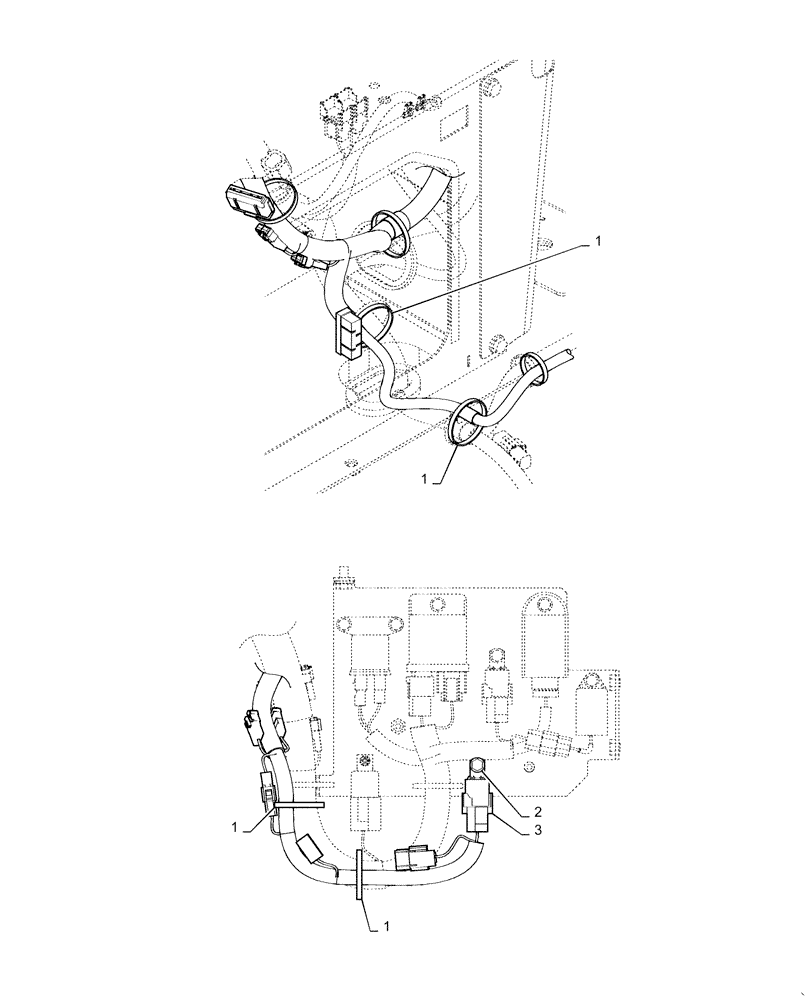

Схема запчастей Case CX55B - (55.785.AS[02]) - HARNESS, ASSY, CAB, MONITOR - LIQUID CRYSTAL (55) - ELECTRICAL SYSTEMS
1
1
1
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Harness Assy, Cab Liquid Crystal Monitor, PS11E00004F1

1шт.

1

PY01P01043D3

CABLE TIE,188mm L

Clip

24шт.

2

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

1шт.

3

PA24E01001P1

RELAY,12V - 20amp

(Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close, Liquid Crystal Display, Quick Coupler)

1шт.

Выбрано товаров: 4
