(55.510.AF[03]) - CAB MAIN WIRE HARNESS, HAND CONTROL PROPORTIONAL, FLOOR

Запчасти Case CX55B (55.510.AF[03]) - CAB MAIN WIRE HARNESS, HAND CONTROL PROPORTIONAL, FLOOR (55) - ELECTRICAL SYSTEMS

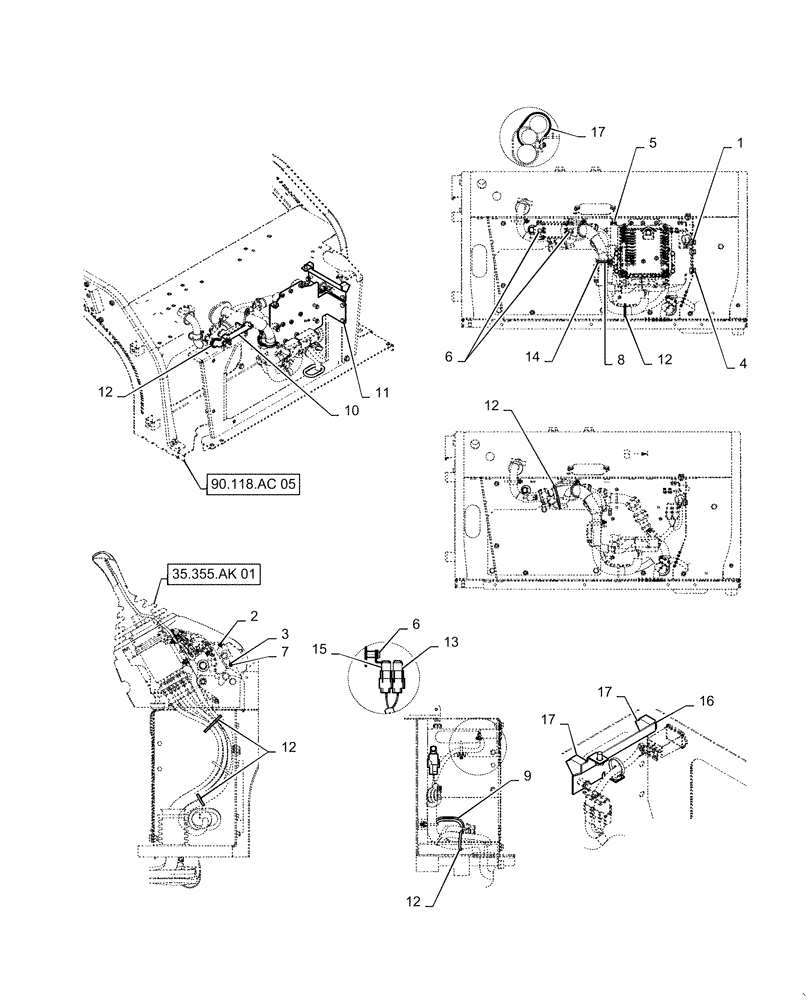

Схема запчастей Case CX55B - (55.510.AF[03]) - CAB MAIN WIRE HARNESS, HAND CONTROL PROPORTIONAL, FLOOR (55) - ELECTRICAL SYSTEMS
12
90.118.ac 05
17
13
12
14
35.355.ak 01
4
12
17
12
9
16
6
2
7
17
12
6
10
1
15
5
11
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Harness Assy, Upp, Floor, PS13E00002F1

1шт.

1

ZW26X08000

LOCK WASHER

5шт.

2

ZW16K04000

WASHER

2шт.

3

ZN18C04003

NUT

2шт.

4

ZN18C08007

NUT

5шт.

5

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

8шт.

6

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

4шт.

7

ZM61C04012

BOLT

Sems

2шт.

8

YN13E01375P1

CLIP,M8 x 8.20mm Shank

11шт.

9

PS13E01022P1

GROMMET

1шт.

10

PS13E01016P1

PLATE

1шт.

11

PS13E01048P1

BRACKET

1шт.

12

PY01P01043D3

CABLE TIE,188mm L

Clip

48шт.

13

PA24E01001P1

RELAY,12V - 20amp

(Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close, Liquid Crystal Display, Quick Coupler)

1шт.

14

PY01P01043D5

CABLE TIE,301mm L

Clip

2шт.

15

PM24S00001P1

RELAY

(Used for Neutral Start, Charge Indicator, Quick Coupler)

1шт.

16

PS13E01050P1

BRACKET

1шт.

17

PS13E01052P1

INSULATION

2шт.
