(55.510.AF[01]) - CAB MAIN WIRE HARNESS, HAND CONTROL PROPORTIONAL, FLOOR, WITH EXTRA NIBBLER AND BREAKER

Запчасти Case CX55B (55.510.AF[01]) - CAB MAIN WIRE HARNESS, HAND CONTROL PROPORTIONAL, FLOOR, WITH EXTRA NIBBLER AND BREAKER (55) - ELECTRICAL SYSTEMS

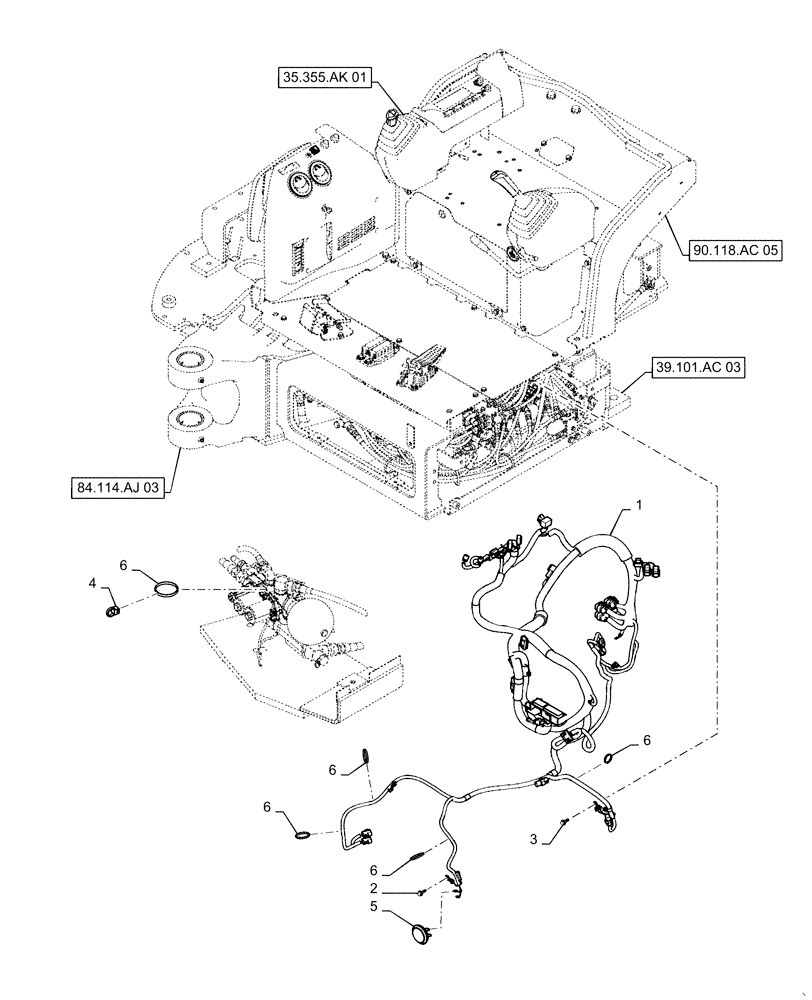

Схема запчастей Case CX55B - (55.510.AF[01]) - CAB MAIN WIRE HARNESS, HAND CONTROL PROPORTIONAL, FLOOR, WITH EXTRA NIBBLER AND BREAKER (55) - ELECTRICAL SYSTEMS
3
6
2
84.114.aj 03
6
6
90.118.ac 05
5
35.355.ak 01
39.101.ac 03
1
6
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Harness Assy, Upp, Floor, W/ Nibbler and Breaker, PS13E00002F1

1шт.

1

PS13E01043P4

WIRE HARNESS

1шт.

2

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

2шт.

3

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

8шт.

4

YT68H01036P1

CLIP

1шт.

5

PY53S00002P1

HORN

1шт.

6

PY01P01043D3

CABLE TIE,188mm L

Clip

48шт.
