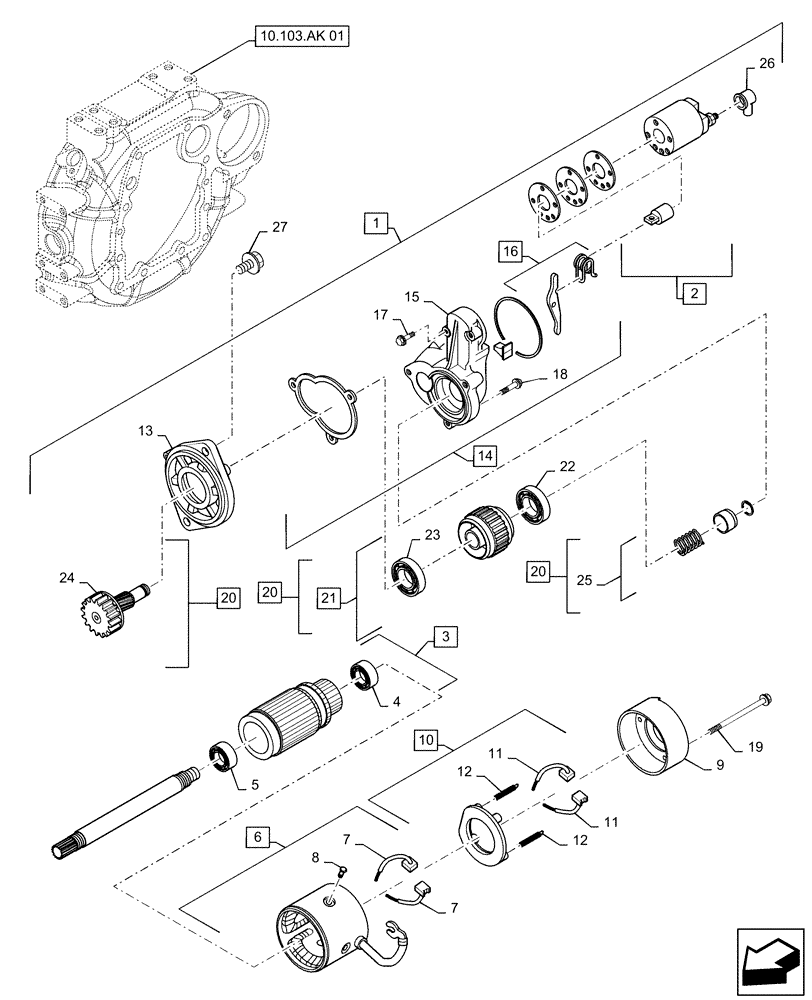

Запчасти Case CX55B (55.201.AE[01]) - STARTING MOTOR (55) - ELECTRICAL SYSTEMS

.

Starting Motor

1шт.

1

VV12913677011

STARTER MOTOR

Incl 2 - 26

1шт.

2

VV12913677310

SHAFT

Assy

1шт.

3

VV12990077400

ARMATURE

Assy, Incl 4, 5

1шт.

4

VVX2130350900

BALL BEARING

1шт.

5

VVX2114255110

BALL BEARING

1шт.

6

VV12990077440

COIL ASSY.

Field, Incl 7, 8

1шт.

7

VV12990077450

COMMUTATOR BRUSH

2шт.

8

VV17100877450

SCREW

4шт.

9

VV12990077460

REAR COVER

1шт.

10

VV12990077480

HOLDER

Assy, Brush, Incl 11, 12

1шт.

11

VV12990077450

COMMUTATOR BRUSH

2шт.

12

VV12940077490

SPRING

4шт.

13

VV17100877510

TRANSMISSION HOUSING

Gear

1шт.

14

VV12940077571

COVER

Assy, Dust, Incl 15 - 18

1шт.

15

VV12913677520

HOUSING

1шт.

16

VV17100877540

LEVER

Set

1шт.

17

VV26106060322

BOLT,M6 x 32mm

2шт.

18

VV26106060402

BOLT,M6 x 40mm

3шт.

19

VV12990077640

BOLT

Through

2шт.

20

VV17100877650

PINION

Assy, Incl 21 - 25

1шт.

21

VVX2114555500

CLUTCH ASSEMBLY

Assy, Incl 22, 23

1шт.

22

VVX2114955020

BALL BEARING

1шт.

23

VVX2240410100

BALL BEARING

1шт.

24

VV17100877660

SHAFT

1шт.

25

VV17100877670

STOP

Set

1шт.

26

VV17100877750

PROTECTIVE COVER

1шт.

27

VV26106120252

BOLT,M12 x 25mm

2шт.
