(55.100.DO[01]) - FUSE AND RELAY BOX, HAND CONTROL PROPORTIONAL, FLOOR

Запчасти Case CX55B (55.100.DO[01]) - FUSE AND RELAY BOX, HAND CONTROL PROPORTIONAL, FLOOR (55) - ELECTRICAL SYSTEMS

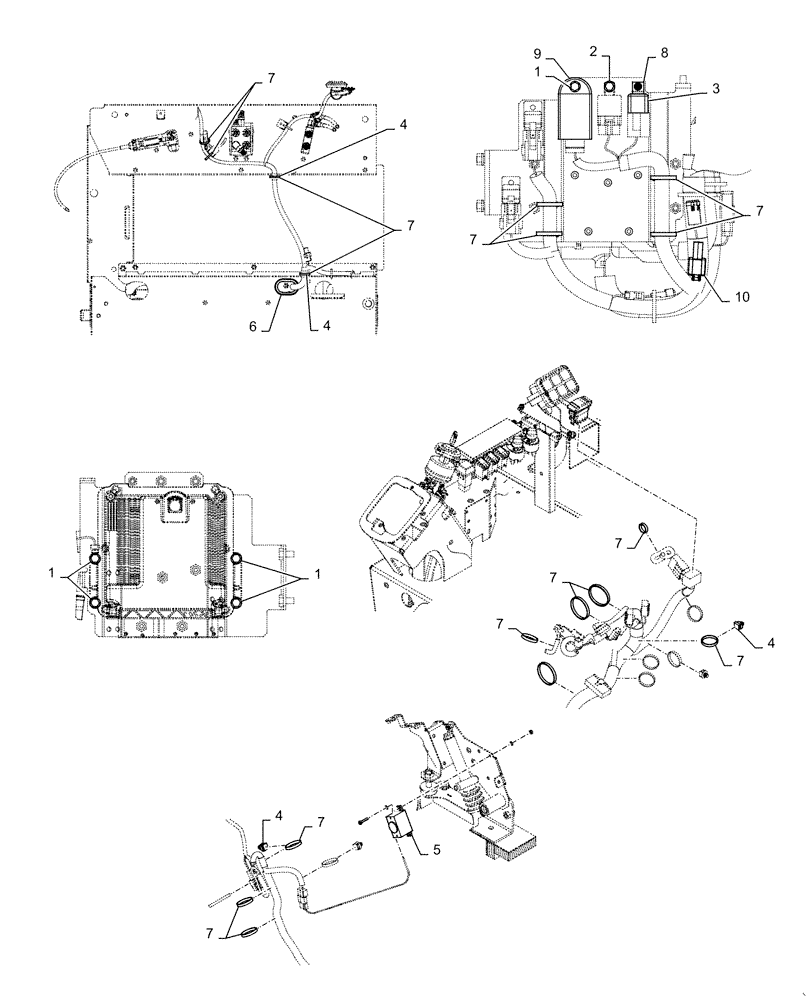

Схема запчастей Case CX55B - (55.100.DO[01]) - FUSE AND RELAY BOX, HAND CONTROL PROPORTIONAL, FLOOR (55) - ELECTRICAL SYSTEMS
4
7
7
1
7
7
4
7
7
7
7
2
4
1
10
8
3
9
7
6
4
7
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Harness Assy, Upp, Floor, PS13E00002F1

1шт.

1

ZM73C06025

BOLT,M6x25mm - Course Thread

Sems

5шт.

2

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

4шт.

3

PH24S00001P1

RELAY,12V, 70amp

(Used for Battery, Engine Stop, Light)

1шт.

4

YN13E01375P1

CLIP,M8 x 8.20mm Shank

11шт.

5

YJ53S01001D3

BUZZER,DC12V, 15mA

1шт.

6

PS13E01021P1

GROMMET

1шт.

7

PY01P01043D3

CABLE TIE,188mm L

Clip

48шт.

8

ZM61C05012

BOLT

Sems

1шт.

9

PA24S00002P4

RELAY,12V, 0.12W

(Used for Sequence Box)

1шт.

10

PS26E01001P1

RESISTOR

1шт.
