(55.015.AJ[05]) - ROTARY BEACON

Запчасти Case CX55B (55.015.AJ[05]) - ROTARY BEACON (55) - ELECTRICAL SYSTEMS

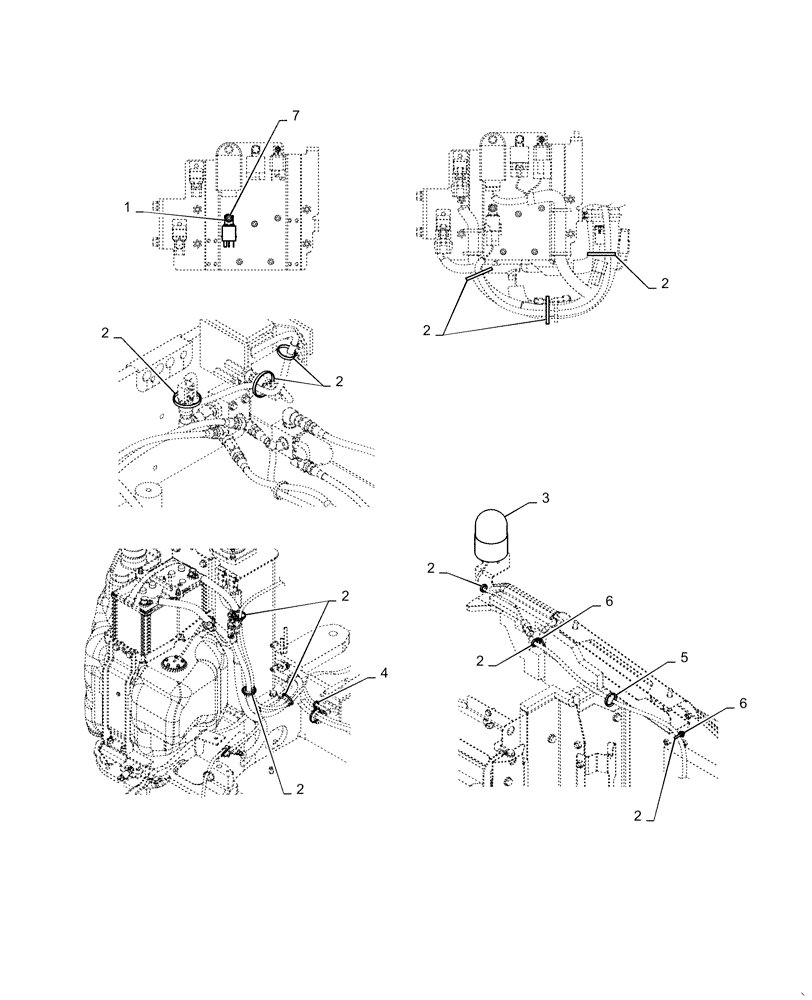

Схема запчастей Case CX55B - (55.015.AJ[05]) - ROTARY BEACON (55) - ELECTRICAL SYSTEMS
3
2
7
5
2
2
5
2
2
2
1
2
2
6
6
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Harness Assy, Rotary Light, PS11E00005F1

1шт.

1

PA24E01001P1

RELAY,12V - 20amp

(12v 20amp) (Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close)

1шт.

2

PY01P01043D3

CABLE TIE,188mm L

Clip

22шт.

3

PY80S00005P1

BEACON

(12v Rotary Light)

1шт.

4

PS11E01007P1

CLIP

1шт.

5

PS11E01008P1

GROMMET

1шт.

6

YN13E01375P1

CLIP,M8 x 8.20mm Shank

2шт.

7

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

1шт.
