(55.015.AJ[02]) - HARNESS, ASSY, UPPER, STAND, NIBBLER & BREAKER OR ROTARY

Запчасти Case CX55B (55.015.AJ[02]) - HARNESS, ASSY, UPPER, STAND, NIBBLER & BREAKER OR ROTARY (55) - ELECTRICAL SYSTEMS

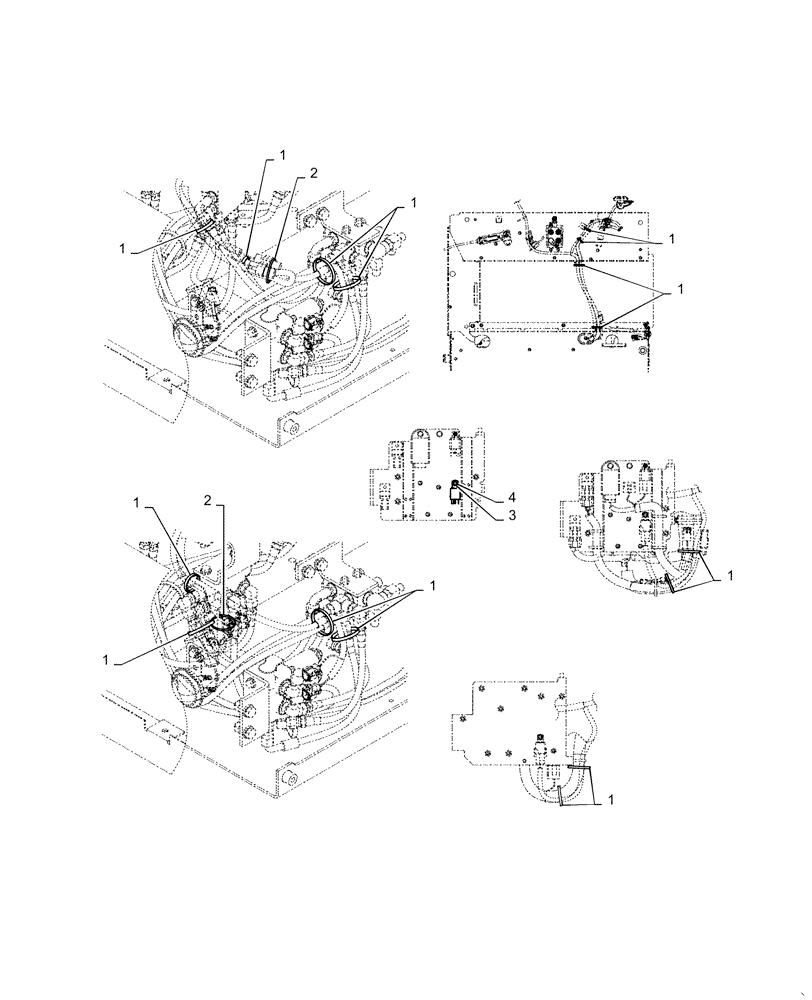

Схема запчастей Case CX55B - (55.015.AJ[02]) - HARNESS, ASSY, UPPER, STAND, NIBBLER & BREAKER OR ROTARY (55) - ELECTRICAL SYSTEMS
1
2
1
1
1
1
2
1
1
1
1
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Harness Assy, PS11E00003F1

1шт.

1

PY01P01043D3

CABLE TIE,188mm L

Clip

26шт.

2

PY01P01043DA

CABLE TIE,2.50mm W x 205mm L

Clip

1шт.

3

PA24E01001P1

RELAY,12V - 20amp

(Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close, Liquid Crystal Display, Quick Coupler)

1шт.

4

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

1шт.

Выбрано товаров: 5
