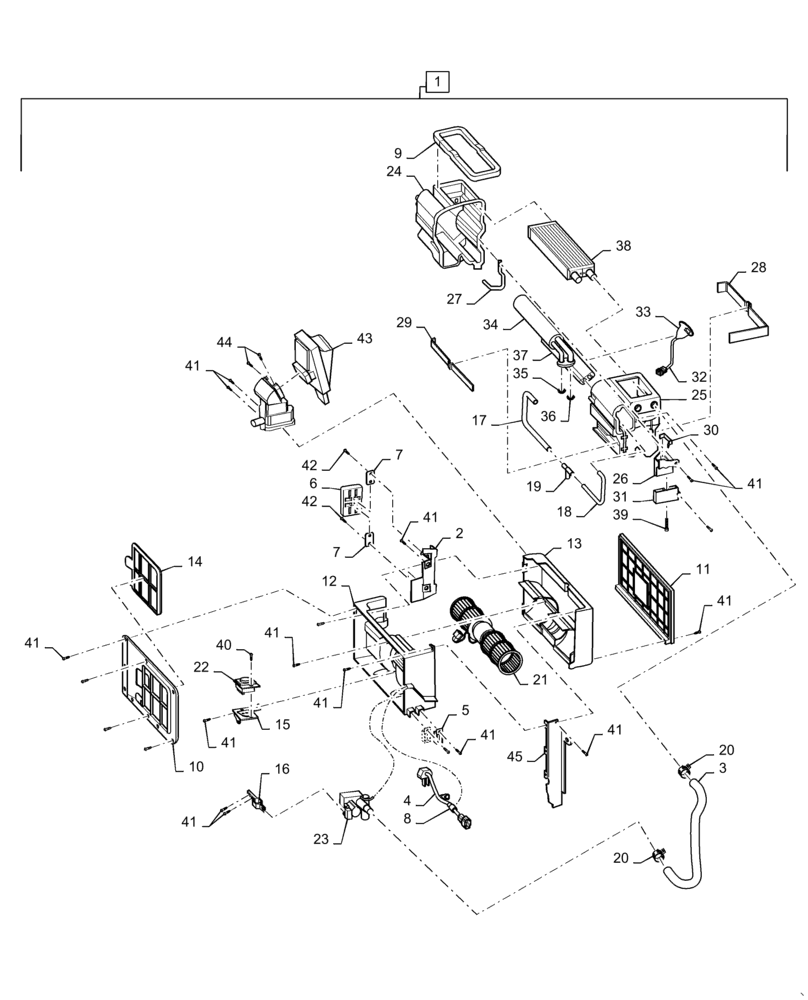

Запчасти Case CX55B (50.200.AB[03]) - AIR CONDITIONER, ASSY (50) - CAB CLIMATE CONTROL

1

PS20M00005F1

AIR CONDITIONER

Assembly, Incl 2 - 45

1шт.

Remaining parts of Assembly on Next Figure

1шт.

2

PS20M00005S002

BRACKET

11шт.

3

PS20M00005S003

A/C HOSE

1шт.

4

PS20M00005S004

WIRE HARNESS

1шт.

5

PS20M00005S005

RELAY

A/C

2шт.

6

PS20M00005S006

CONTROLLER

A/C

1шт.

7

PS20M00005S007

BRACKET

2шт.

8

PS20M00005S008

INSULATION

1шт.

9

PS20M00005S009

PACKING

1шт.

10

PS20M00005S010

COVER

1шт.

11

PS20M00005S011

COVER

1шт.

12

PS20M00005S012

COVER

1шт.

13

PS20M00005S013

COVER

1шт.

14

PS20M00005S014

FILTER

A/C, Start Serial: PW16-80005

1шт.

15

PS20M00005S015

RESISTOR

1шт.

16

PS20M00005S016

VALVE

Assembly

1шт.

17

PS20M00005S017

A/C HOSE

1шт.

18

PS20M00005S018

A/C HOSE

1шт.

19

PS20M00005S019

A/C HOSE

1шт.

20

YN20M00016S044

CLAMP

2шт.

21

PS20M00005S021

BLOWER

Assembly

1шт.

22

PS20M00005S022

RESISTOR

1шт.

23

PS20M00005S023

VALVE

Assembly

1шт.

24

PS20M00005S024

COVER

1шт.

25

PS20M00005S025

COVER

1шт.

26

PS20M00005S026

COVER

1шт.

27

PS20M00005S027

INSULATION

1шт.

28

PS20M00005S028

INSULATION

1шт.

29

PS20M00005S029

INSULATION

1шт.

30

PS20M00005S030

RETAINER

1шт.

31

PS20M00005S031

VALVE

1шт.

32

PS20M00005S032

THERMOMETER

1шт.

33

PS20M00005S033

HOLDER

1шт.

34

PS20M00005S034

EVAPORATOR

1шт.

35

2445Z1604D4

O-RING

1шт.

36

2445Z1604D5

O-RING

1шт.

37

PS20M00005S037

STAY

1шт.

38

PS20M00005S038

CONDENSER

1шт.

39

YT20M00004S066

CAPSCREW

2шт.

40

PS20M00005S048

SCREW

2шт.

41

LQ20M00059S047

SCREW

11шт.

42

PS20M00005S051

SCREW

2шт.

43

PS20M00005S052

FILTER

1шт.

44

PS20M00005S053

PIN

2шт.

45

PS20M00005S001

BRACKET

1шт.
