(50.200.AA[05]) - AIR CONDITIONING, MOUNTING

Запчасти Case CX55B (50.200.AA[05]) - AIR CONDITIONING, MOUNTING (50) - CAB CLIMATE CONTROL

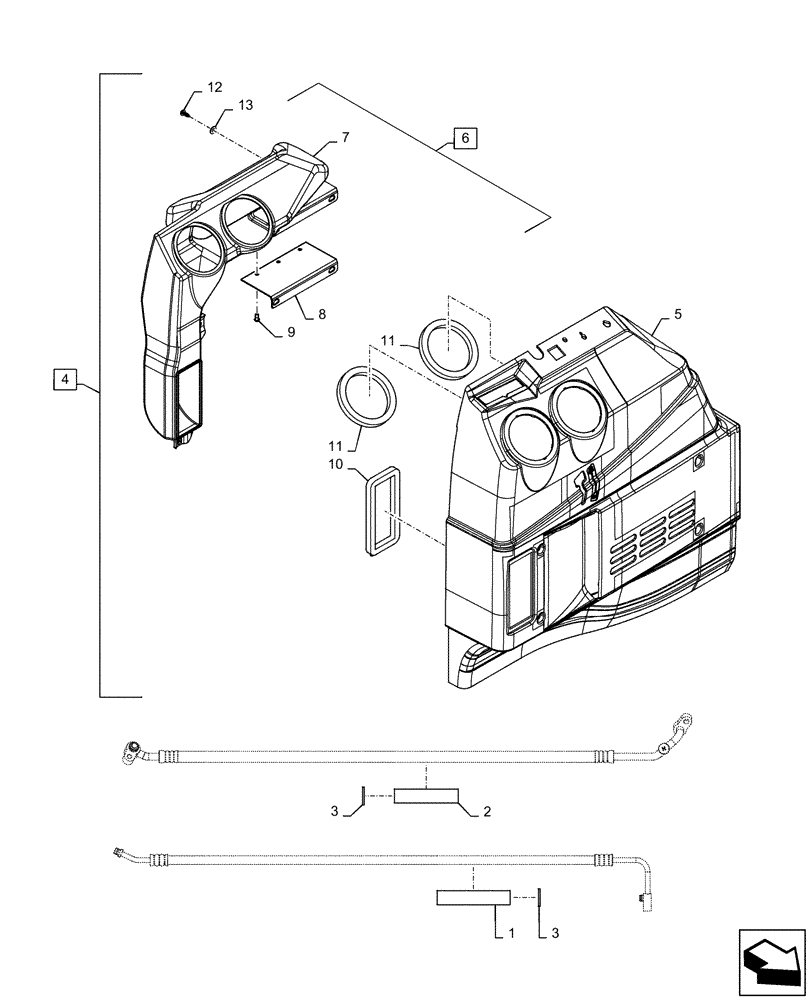

Схема запчастей Case CX55B - (50.200.AA[05]) - AIR CONDITIONING, MOUNTING (50) - CAB CLIMATE CONTROL
3
7
9
11
8
1
10
11
3
13
5
12
4
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Conditioner, Air, PS20M00001F1

1шт.

1

2418Z1333D1

PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 250mm Length

1шт.

2

2418Z1333D15

PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 300mm Length

1шт.

3

PY01P01043D3

CABLE TIE,188mm L

1шт.

4

PS20M01097F1

COVER ASSY

Incl 5, 6, 10 - 13

1шт.

5

PS20M01050P2

COVER

1шт.

6

PS20M01094F1

DUCT

Assy, Incl 7 - 9

1шт.

7

PS20M01049P1

DUCT

1шт.

8

PS20M01052P1

PLATE

1шт.

9

PY20M01158S003

RIVET

1шт.

10

PS20M01023P1

INSULATION

1шт.

11

PS20M01053P1

INSULATION

1шт.

12

ZS32T50014

SCREW

Cross Tapping

1шт.

13

PM51C01077P1

WASHER

1шт.
