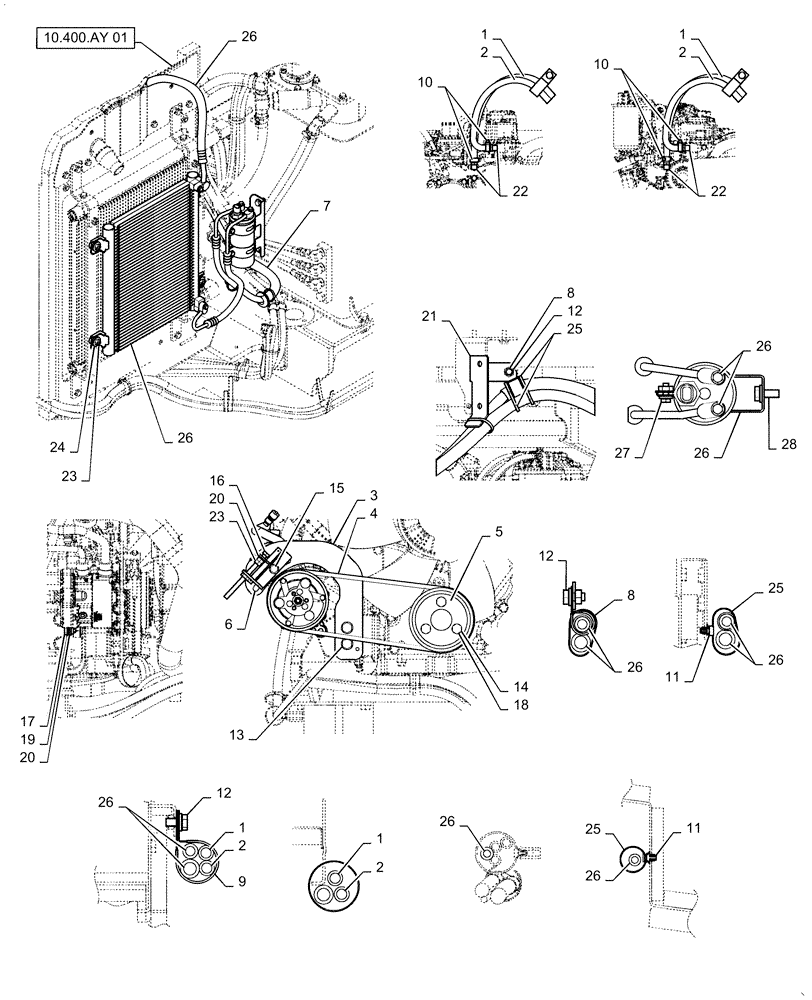

Запчасти Case CX55B (50.200.AA[02]) - AIR CONDITIONING, MOUNTING (50) - CAB CLIMATE CONTROL

.

Conditioner, Air, PS20M00001F1

1шт.

1

PS20M01017P1

HOSE

1шт.

2

PS20M01063P1

HOSE

1шт.

3

PS20M01058P1

BRACKET

1шт.

4

PW20M01097D5

V-BELT

Air Conditioner (A/C)

1шт.

5

PS20M01011P1

PULLEY

1шт.

6

PS20M01061P1

BRACKET

1шт.

7

2418Z1333D1

PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 250mm Length

1шт.

8

ZC46X25011

CLIP

1шт.

9

EN02H01044P1

CLIP

1шт.

10

ZC16X01800

CLIP

4шт.

11

YN13E01375P1

CLIP,M8 x 8.20mm Shank

3шт.

12

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

13

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.

14

ZS18C10030

SCREW,Hex, M10 x 30mm

Cap

3шт.

15

ZM73C08030

BOLT,M8x30mm - Course Thread

Sems

1шт.

16

PS20M01038P1

SCREW

Cap

1шт.

17

ZS18C08100

SCREW,Hex, M8 x 100mm

Cap

1шт.

18

ZW26X10000

LOCK WASHER

3шт.

19

ZW26X08000

LOCK WASHER

1шт.

20

ZW16P08000

WASHER

2шт.

21

PS20M01099P1

BRACKET

1шт.

22

2444Z1630

FITTING

Connector

2шт.

23

ZN18C08007

NUT

6шт.

24

PV01P01007P1

WASHER

4шт.

25

PY01P01043D3

CABLE TIE,188mm L

Clip

10шт.

26

PS20M00002F1

AIR CONDITIONER

1шт.

27

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

2шт.

28

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

2шт.
