(50.200.AA[01]) - AIR CONDITIONING, MOUNTING

Запчасти Case CX55B (50.200.AA[01]) - AIR CONDITIONING, MOUNTING (50) - CAB CLIMATE CONTROL

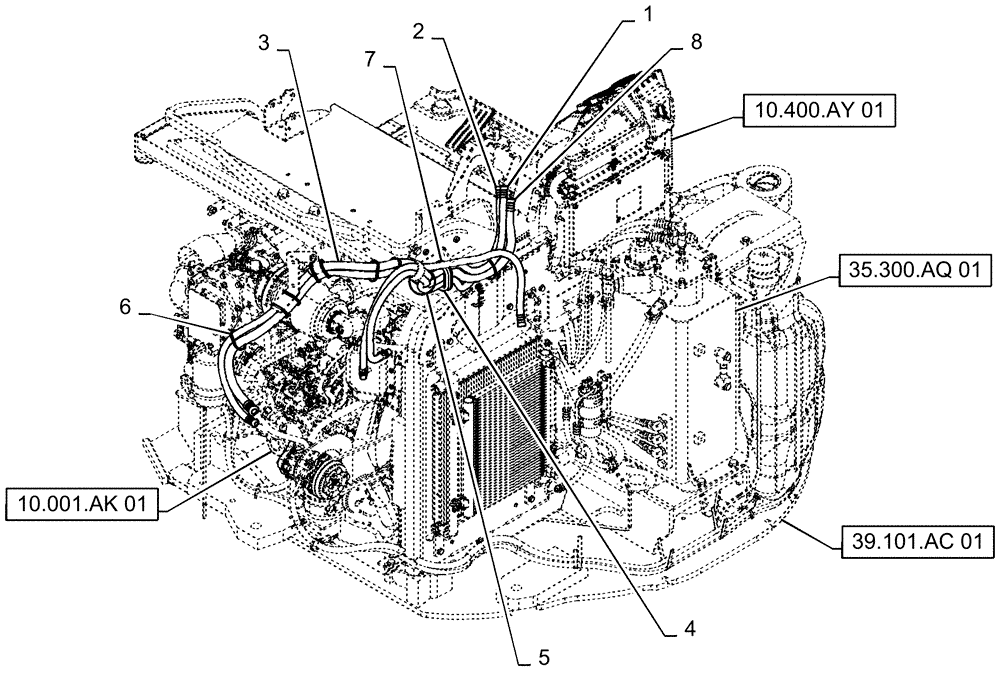

Схема запчастей Case CX55B - (50.200.AA[01]) - AIR CONDITIONING, MOUNTING (50) - CAB CLIMATE CONTROL
2
10.400.ay 01
3
6
39.101.ac 01
10.001.ak 01
7
4
8
1
5
35.300.aq 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Conditioner, Air, PS20M00001F1

1шт.

1

PS20M01017P1

HOSE

1шт.

2

PS20M01063P1

HOSE

1шт.

3

2418Z1333D15

PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 300mm Length

1шт.

4

PS20M01070P1

GROMMET

1шт.

5

PY01P01043D5

CABLE TIE,301mm L

Clip

2шт.

6

PY01P01043D3

CABLE TIE,188mm L

Clip

10шт.

7

PS20M01071P1

INSULATION

1шт.

8

PS20M00002F1

AIR CONDITIONER

1шт.
