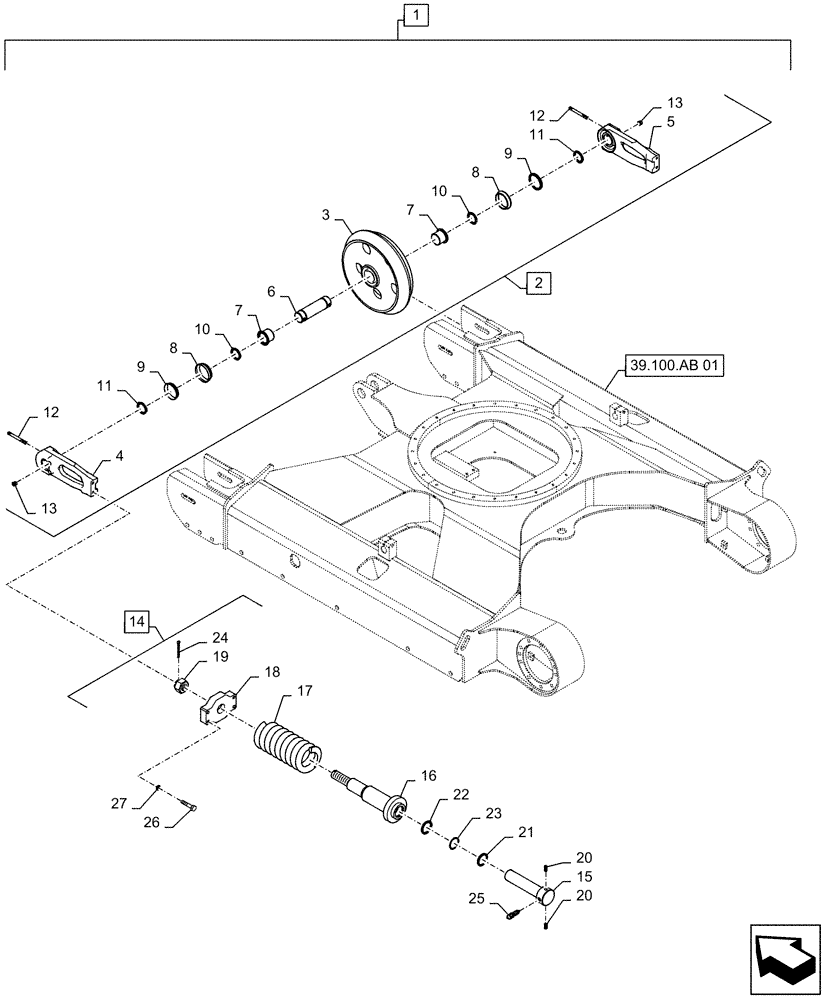

Запчасти Case CX55B (48.134.AA[01]) - IDLER, ASSY (48) - TRACKS & TRACK SUSPENSION

.

Idler Assy, Crawler, PS52D00004F1

1шт.

1

PS52D00001F1

IDLER

Assy, Crawler, Incl 2 - 27

2шт.

2

PS52D00002F1

IDLER

Assy, Incl 3 - 13

1шт.

3

PS52D00003P1

IDLER

1шт.

4

PS52D01001P1

COLLAR

1шт.

5

PS52D01002P1

COLLAR

1шт.

6

PS52D01003P1

SHAFT

1шт.

7

2405T1684

BUSHING

2шт.

8

2445R439F1

SEAL,64mm ID x 85.2mm OD x 28mm Thk

Floating

2шт.

9

2445R439S1

SEAL

2шт.

10

2445R439S2

O-RING

2шт.

11

ZD12G04000

O-RING,39.40mm ID x 45.60mm OD x 3.10mm

2шт.

12

ZP26D10100

PIN

Spring

2шт.

13

PV52D01007P1

PLUG

2шт.

14

PS54D00001F1

IDLER

Adjust Assy, Incl 15 - 25

1шт.

15

PY01V01022P1

PISTON

1шт.

16

PS70V00001P1

GREASE CARTRIDGE

Cylinder

1шт.

17

PY54D01018P1

SPRING

1шт.

18

PS54D01001P1

PLATE

1шт.

19

PS54D01002P1

NUT

1шт.

20

PX54D01014P1

PIN,10mm OD x 24mm L

2шт.

21

PY54D01020P1

SEAL

1шт.

22

ZD12P04500

O-RING

1шт.

23

ZD85P04500

BACK-UP RING

1шт.

24

ZP16D06063

PIN

Split

1шт.

25

PX80B01026P1

LUBE NIPPLE

Grease

1шт.

26

ZS18C10050

SCREW,Hex, M10 x 50mm

Cap

4шт.

27

PY52D01023P1

WASHER

4шт.
