(39.100.AH[01]) - COVER ASSY UNDER

Запчасти Case CX55B (39.100.AH[01]) - COVER ASSY UNDER (39) - FRAMES AND BALLASTING

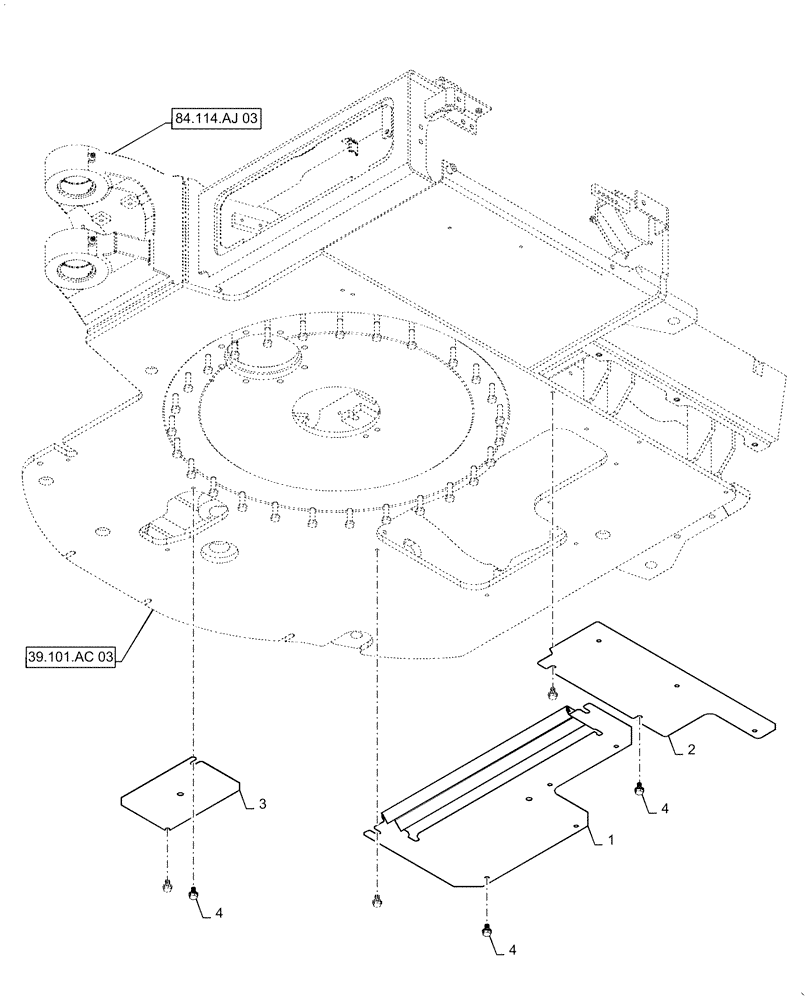

Схема запчастей Case CX55B - (39.100.AH[01]) - COVER ASSY UNDER (39) - FRAMES AND BALLASTING
3
4
84.114.aj 03
39.101.ac 03
4
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Cover Assy, Under, PS24C00003F1

1шт.

1

PS24C01001P1

COVER

1шт.

2

PS24C01014P2

COVER

1шт.

3

PS24C01003P1

COVER

1шт.

4

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

13шт.
