Запчасти Case CX55B (35.739.AA[02]) - CYLINDER, ASSY, SWING (35) - HYDRAULIC SYSTEMS

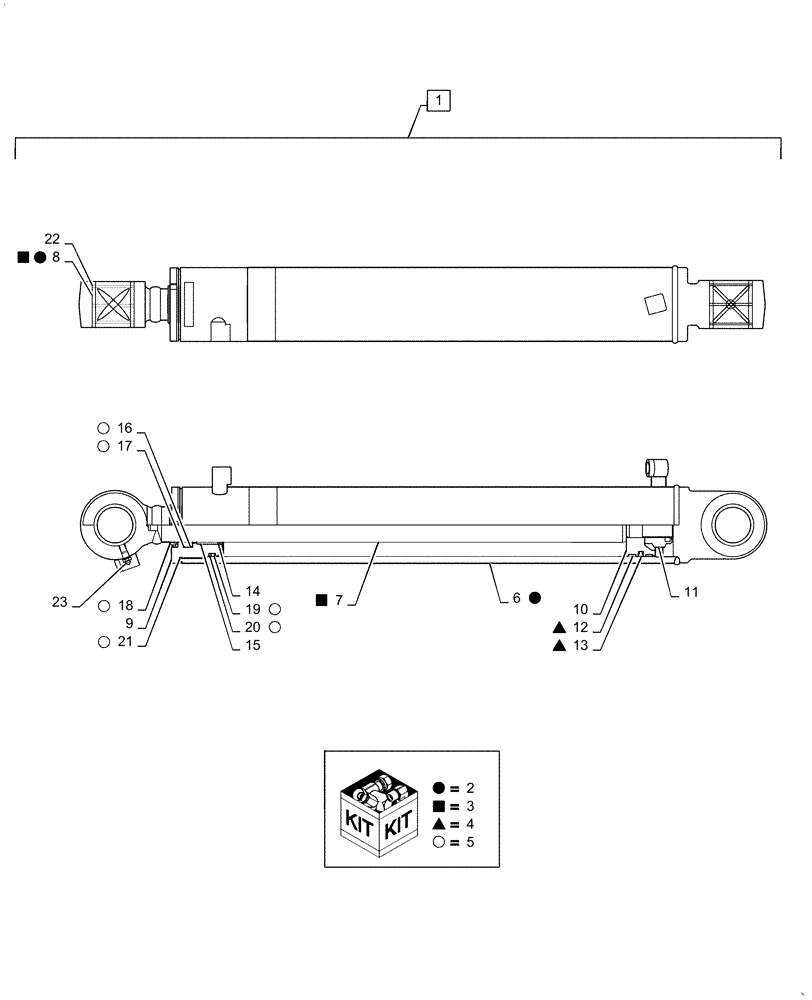

Схема запчастей Case CX55B - (35.739.AA[02]) - CYLINDER, ASSY, SWING (35) - HYDRAULIC SYSTEMS
21
23
5
4
22
5
2
3
12
19
15
10
8
3
2
16
5
2
2
17
18
5
5
5
13
5
11
14
7
3
4
4
4
3
1
20
6
9
5

Артикул

Название

Примечание

Количество

1

PS01V00004F1

HYDRAULIC CYLINDER

Swing, Incl 2 - 23

1шт.

2

PS01V00004R100

KIT

Repair, Incl 6 (1), 8 (1)

1шт.

3

PS01V00004R200

KIT

Repair, Incl 7 (1), 8 (1)

1шт.

4

PS01V00004R300

KIT

Repair, Incl 13 (1), 12 (2)

1шт.

5

PS01V00004R400

KIT

Repair, Incl 16 - 21 (1)

1шт.

6

NSS

NOT SOLD SEPARAT

Tube Assy, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Rod, Piston, Incl in 3

1шт.

8

PH01V00031S003

BUSHING

2шт.

9

PH01V00031S004

CYLINDER HEAD

1шт.

10

PS01V00004S005

PISTON

1шт.

11

PH01V00031S006

NUT

Lock

1шт.

12

PH01V00027S010

RING

Wear

2шт.

13

PH01V00027S011

RING

1шт.

14

PH01V00027S013

RING

Retaining

1шт.

15

PH01V00031S010

BUSHING

1шт.

16

PH01V00027S015

CIRCLIP

Ring

1шт.

17

PH01V00027S016

RING

Back Up

1шт.

18

PH01V00037S023

RING

1шт.

19

ZD12P08000

O-RING

1шт.

20

ZD85P08000

BACK-UP RING

1шт.

21

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

22

PH01V00027S021

RING

Seal, Dust

4шт.

23

YT01V00035S018

FITTING

Nipple, Grease

1шт.

Выбрано товаров: 23
