Запчасти Case CX55B (35.738.AA[02]) - CYLINDER, ASSY, BUCKET (35) - HYDRAULIC SYSTEMS

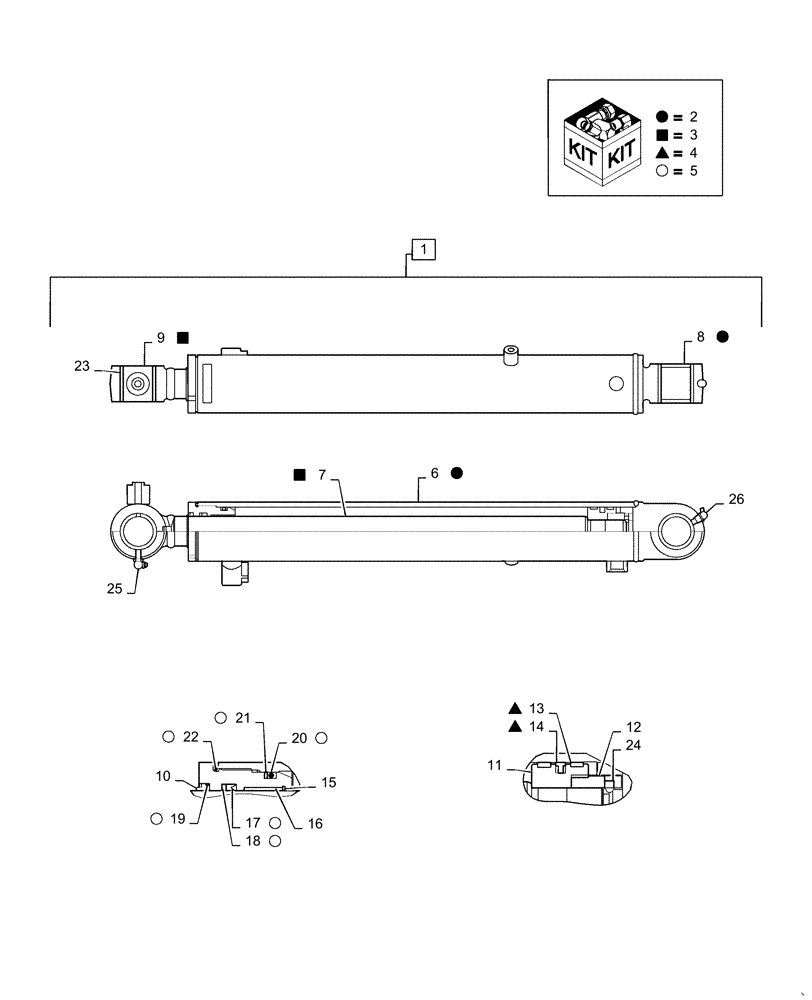

Схема запчастей Case CX55B - (35.738.AA[02]) - CYLINDER, ASSY, BUCKET (35) - HYDRAULIC SYSTEMS
12
5
5
22
5
3
5
19
7
6
2
5
4
3
8
23
18
20
5
15
11
3
13
10
2
21
2
17
24
25
2
4
3
4
5
9
14
5
26
16
1
4

Артикул

Название

Примечание

Количество

1

PS01V00003F1

HYDRAULIC CYLINDER

Bucket, Incl 2 - 26

1шт.

2

PS01V00003R100

KIT

Repair, Incl 6 (1), 8 (1)

1шт.

3

PS01V00003R200

KIT

Repair, Incl 7 (1), 9 (1)

1шт.

4

PS01V00003R300

KIT

Repair, Incl 14 (1), 13 (2)

1шт.

5

PS01V00003R400

KIT

Repair, Incl 17 - 22 (1)

1шт.

6

NSS

NOT SOLD SEPARAT

Tube Assy, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Rod, Piston, Incl in 3

1шт.

8

PS01V00003S003

BUSHING

1шт.

9

PH01V00034S004

BUSHING

1шт.

10

PH01V00034S005

CYLINDER HEAD

1шт.

11

PY01V00047S006

PISTON

1шт.

12

PY01V00047S007

NUT

Lock

1шт.

13

PH01V00034S009

RING

Wear

2шт.

14

PH01V00034S010

RING

1шт.

15

PH01V00034S011

CIRCLIP

Retaining

1шт.

16

PH01V00034S012

BUSHING

1шт.

17

PH01V00034S013

RING

Ring

1шт.

18

PH01V00034S014

RING

Back Up

1шт.

19

PY01V00047S020

RING

1шт.

20

ZD12P06500

O-RING

1шт.

21

ZD85P06500

RING

Back-Up

1шт.

22

ZD11G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

1шт.

23

PH01V00034S020

RING

Seal, Dust

4шт.

24

PY01V00047S019

SCREW

1шт.

25

PH01V00042S024

NIPPLE

Grease

1шт.

26

PS01V00001S020

NIPPLE

Grease

1шт.

Выбрано товаров: 26
