(35.738.AA[01]) - CYLINDER, MOUNTING, BUCKET

Запчасти Case CX55B (35.738.AA[01]) - CYLINDER, MOUNTING, BUCKET (35) - HYDRAULIC SYSTEMS

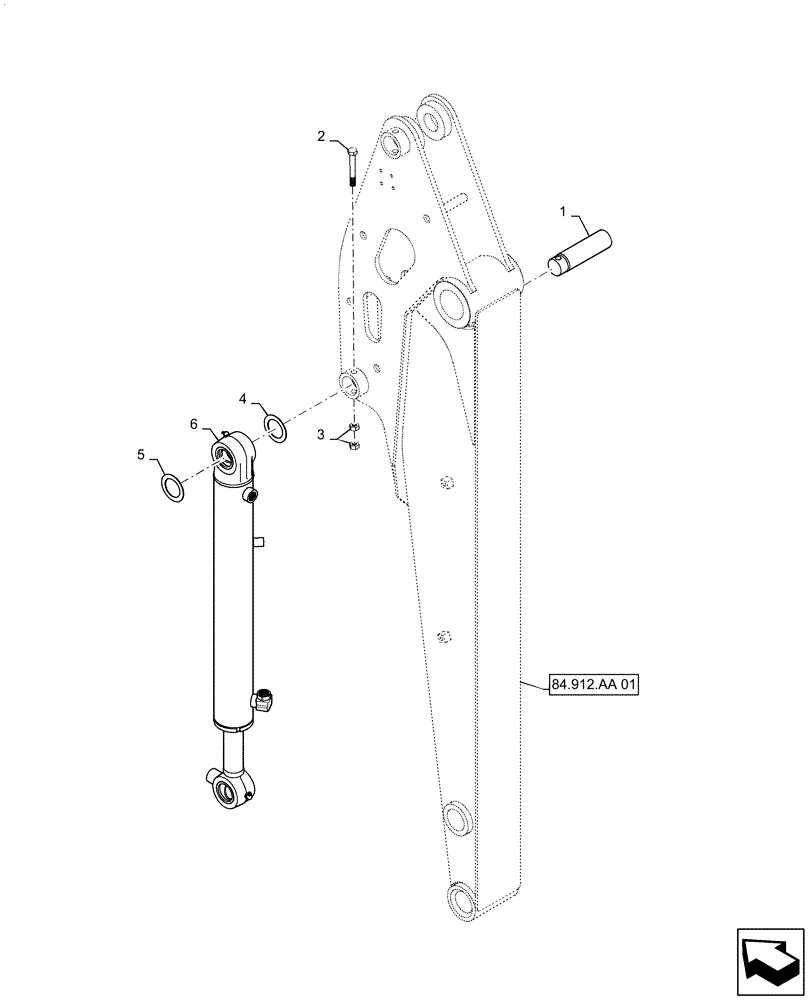

Схема запчастей Case CX55B - (35.738.AA[01]) - CYLINDER, MOUNTING, BUCKET (35) - HYDRAULIC SYSTEMS
5
84.912.aa 01
4
1
2
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Cylinder Install, Bucket, PS12B00008F1

1шт.

1

PS12B01024P1

PIN

1шт.

2

HS18C12090G1

SCREW

Cap

1шт.

3

ZN18C12010

NUT

2шт.

4

YJ12B01043P1

SHIM,0.5mm Thk

2шт.

5

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

1шт.

6

PS01V00003F1

HYDRAULIC CYLINDER

Bucket

1шт.
