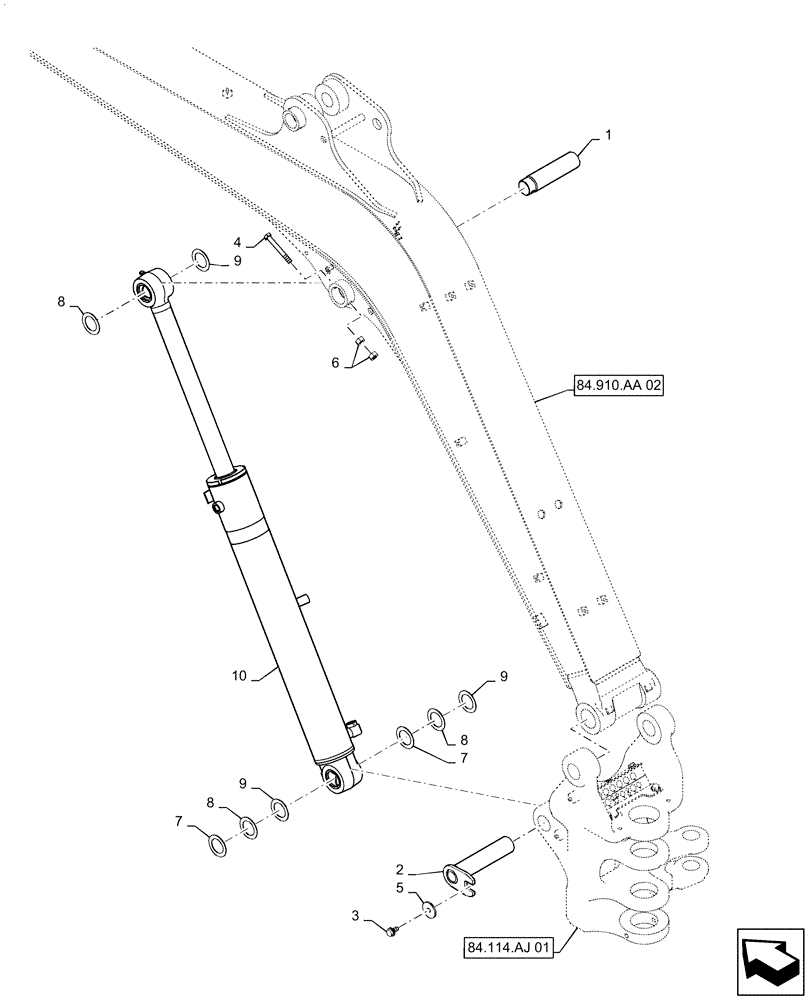

Запчасти Case CX55B (35.736.AK[01]) - CYLINDER, MOUNTING, BOOM (35) - HYDRAULIC SYSTEMS

.

Cylinder Install, Boom, PS02B00008F1

1шт.

1

PS02B01034P1

PIN

1шт.

2

PS02B01025P1

PIN

1шт.

3

ZM73C12025

BOLT,M12x25mm - Course Thread

Sems

1шт.

4

HS18C12100G2

SCREW

Cap

1шт.

5

2418T17895

WASHER

1шт.

6

ZN18C12010

NUT

2шт.

7

B16T0442D54

SHIM,52mm ID x 80mm OD x 0.5mm Thk

4шт.

8

B16T0442D41

SHIM,80mm OD x 52mm ID x 0.9mm Thk

3шт.

9

B16T0442D24

SHIM,80mm OD x 52mm ID x 2.3mm Thk

3шт.

10

PS01V00001F1

HYDRAULIC CYLINDER

Boom

1шт.
