(35.736.AC[02]) - HYD. LINE, BOOM, NIBBLER & BREAKER OR ROTARY

Запчасти Case CX55B (35.736.AC[02]) - HYD. LINE, BOOM, NIBBLER & BREAKER OR ROTARY (35) - HYDRAULIC SYSTEMS

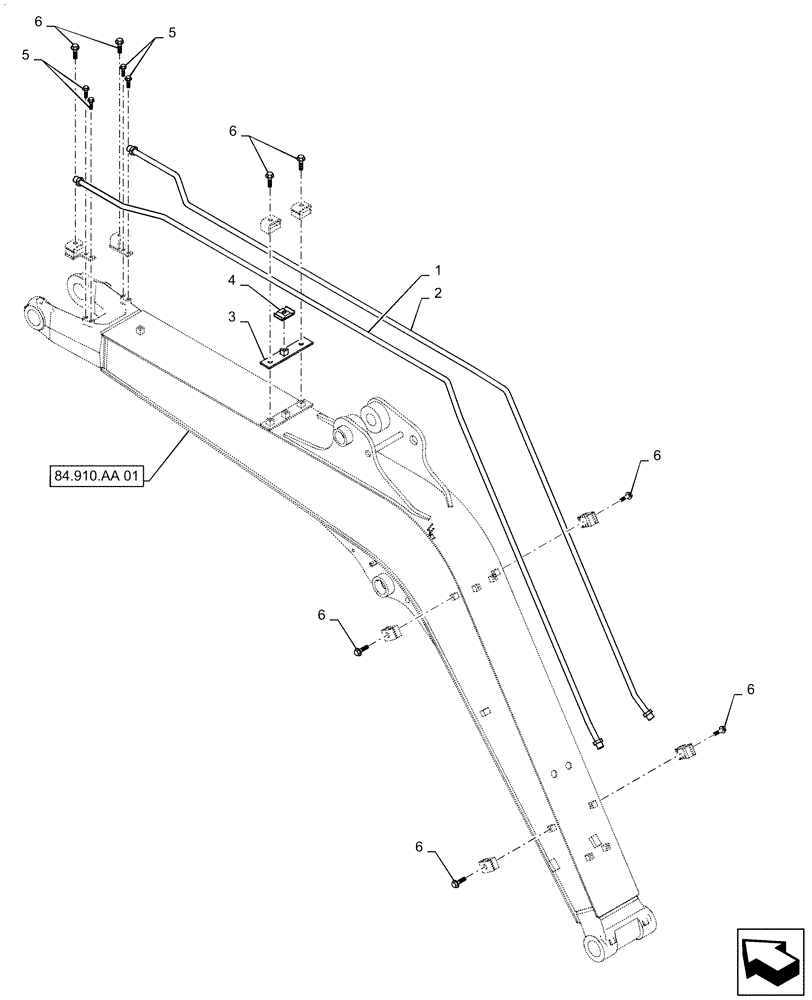

Схема запчастей Case CX55B - (35.736.AC[02]) - HYD. LINE, BOOM, NIBBLER & BREAKER OR ROTARY (35) - HYDRAULIC SYSTEMS
6
6
5
6
84.910.aa 01
6
6
2
6
4
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Hyd Lines, Boom, Nibbler and Breaker, PS42H00008F1

1шт.

1

PS42H01003P1

TUBE

1шт.

2

PS42H01004P1

TUBE

1шт.

3

PW42H01155P1

BRACKET

1шт.

4

PS42H01005P1

CLAMP

1шт.

5

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

4шт.

6

ZM73C10035

BOLT,M10x35mm - Course Thread

Sems

8шт.

Выбрано товаров: 7
