Запчасти Case CX55B (35.359.AE[07]) - HYD LINES, UPPER (35) - HYDRAULIC SYSTEMS

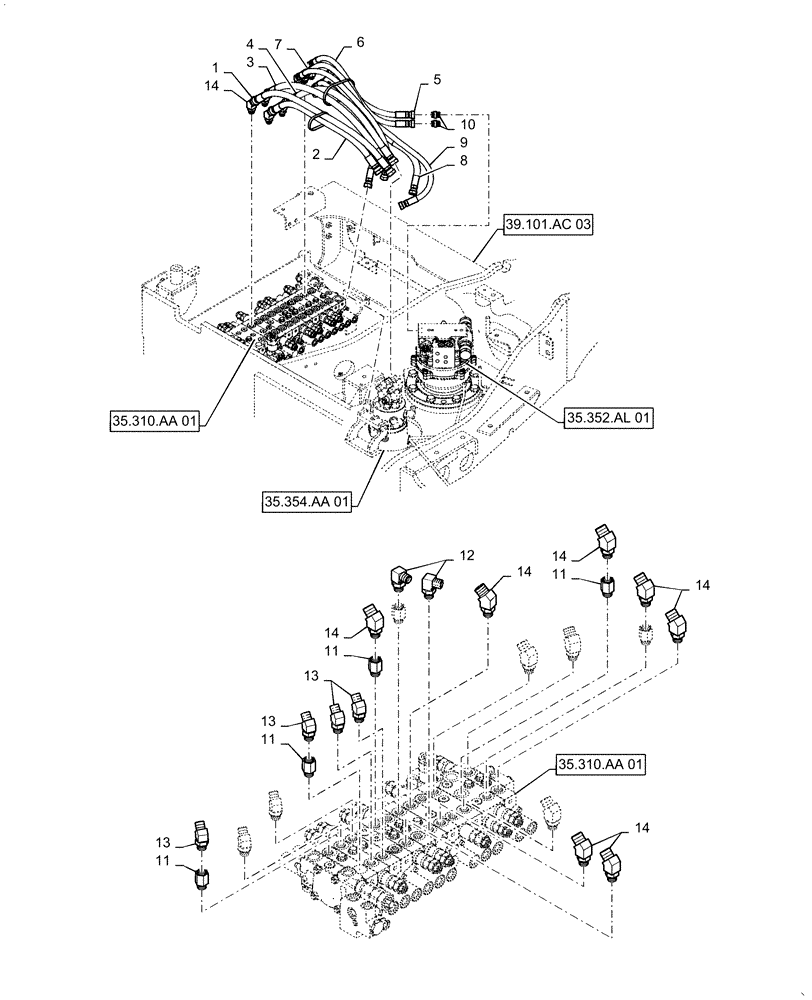

Схема запчастей Case CX55B - (35.359.AE[07]) - HYD LINES, UPPER (35) - HYDRAULIC SYSTEMS
14
35.310.aa 01
14
11
3
14
5
13
11
8
14
4
10
7
9
39.101.ac 03
14
11
13
35.352.al 01
2
13
6
12
11
14
1
35.354.aa 01
35.310.aa 01

Артикул

Название

Примечание

Количество

.

Hyd Lines, Upper, PS03H00007F1

1шт.

1

LE03H01338DV

HOSE

C/V A3-S/J A

1шт.

2

PS03H01004D7

HOSE

C/V B3-S/J C

1шт.

3

PS03H01004D8

HOSE

C/V A4-S/J B

1шт.

4

PS03H01004D1

HOSE

C/V B4-S/J D

1шт.

5

LE03H01339DP

HOSE

C/V B10-S/M B

1шт.

6

LE03H01339D7

HOSE

C/V A10-S/M A

1шт.

7

LE03H01339DN

HOSE

C/V A8-S/J F, C/V A9-S/J H

2шт.

8

PS03H01002D7

HOSE

C/V B8-S/J E

1шт.

9

LE03H01339DH

HOSE

C/V B9-S/J G

1шт.

10

HH25S06006G1

HYD CONNECTOR

2шт.

11

2444Z2891

HYD CONNECTOR

6шт.

12

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

2шт.

13

HH45S06006G1

45 ELBOW

6шт.

14

HH45S08006G1

45 ELBOW

10шт.

Выбрано товаров: 15
