Запчасти Case CX55B (35.359.AE[02]) - HYD. LINE, UPPER, NIBBLER & BREAKER OR ROTARY (35) - HYDRAULIC SYSTEMS

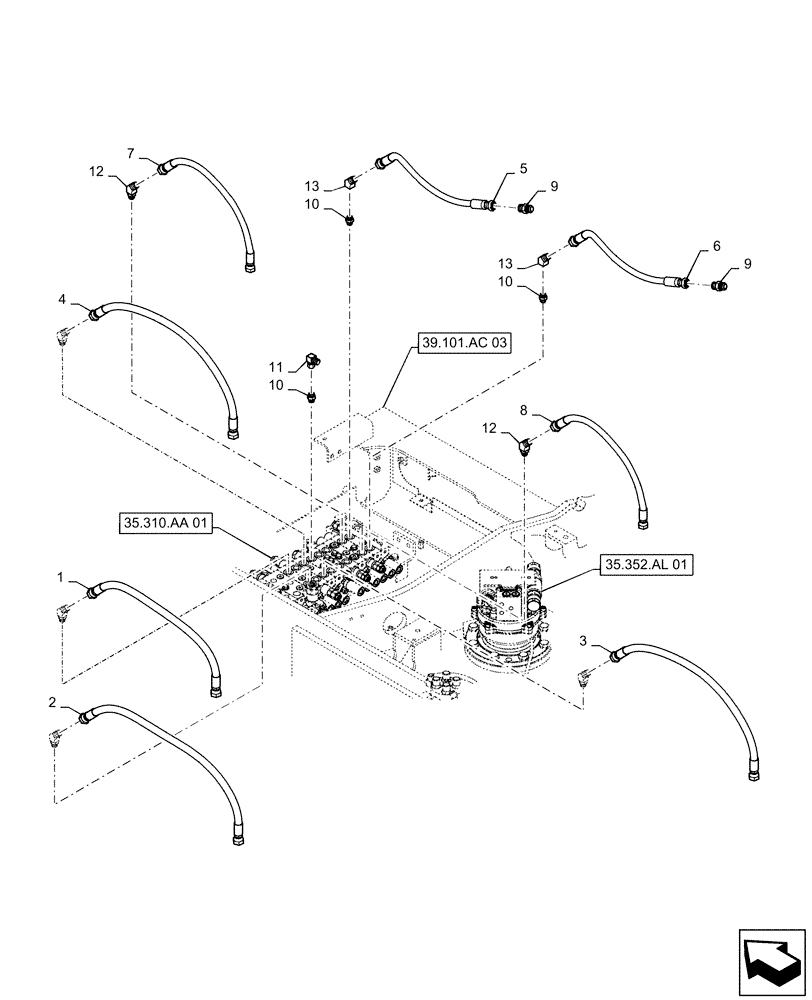

Схема запчастей Case CX55B - (35.359.AE[02]) - HYD. LINE, UPPER, NIBBLER & BREAKER OR ROTARY (35) - HYDRAULIC SYSTEMS
11
3
10
2
13
7
13
4
5
10
8
35.310.aa 01
6
10
35.352.al 01
9
12
9
39.101.ac 03
12
1

Артикул

Название

Примечание

Количество

.

Hyd Lines, Upp, PS03H00003F1

1шт.

1

LE03H01338DD

HOSE

C/V B3-S/J C

1шт.

2

LE03H01338DE

HOSE

C/V A3-S/J A

1шт.

3

LE03H01338DF

HOSE

C/V B4-S/J D

1шт.

4

LE03H01338DG

HOSE

C/V A4-S/J B

1шт.

5

LE03H01339DP

HOSE

C/V B9-S/M B

1шт.

6

LE03H01339D7

HOSE

C/V A9-S/M A

1шт.

7

LE03H01339D8

HOSE

C/V A8-S/J F

1шт.

8

LE03H01339D9

HOSE

C/V B8-S/J E

1шт.

9

HH25S06006G1

HYD CONNECTOR

2шт.

10

2444Z2891

HYD CONNECTOR

6шт.

11

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

2шт.

12

HH45S06006G1

45 ELBOW

4шт.

13

HH45S08006G1

45 ELBOW

10шт.

Выбрано товаров: 14
