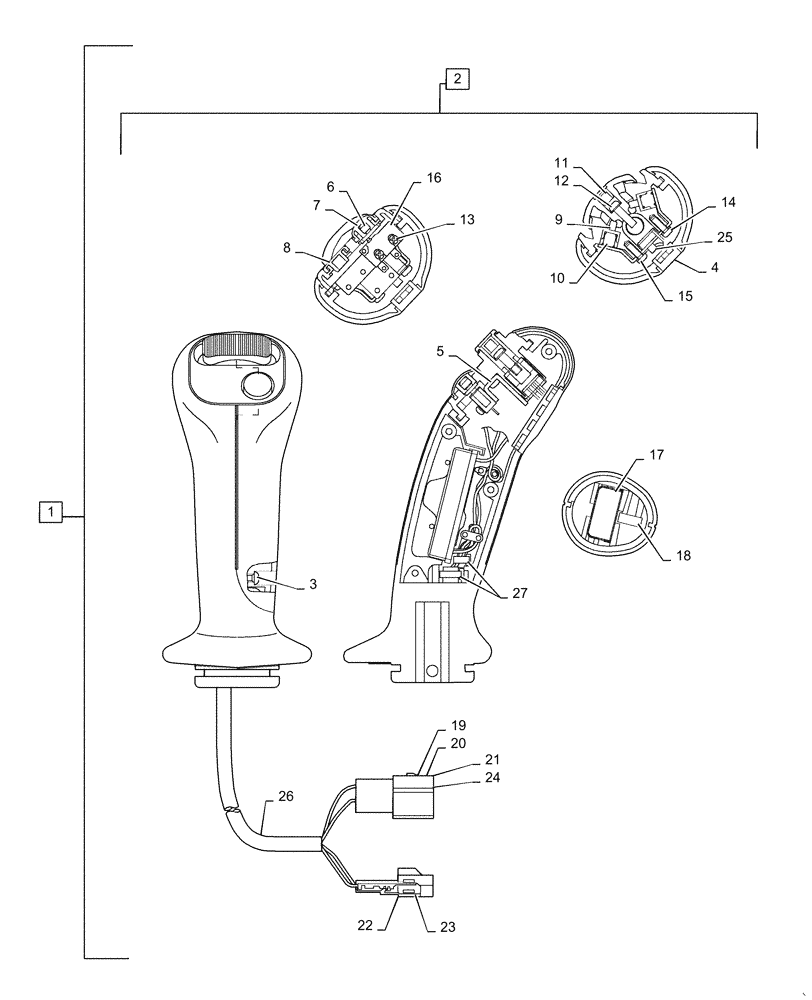

Запчасти Case CX55B (35.355.AK[10]) - GRIP, ASSY, NIBBLER & BREAKER & ROTARY (35) - HYDRAULIC SYSTEMS

1

PS03M01185F1

GRIP

Assy, Incl 2 - 27

1шт.

2

PW03M01959F1

HANDLE

Assy, Incl 3 - 27

1шт.

3

ZS32T30016

SELF-TAP SCREW

Cross

4шт.

4

PW03M01958S404

PLUG

1шт.

5

PW03M01958S405

BRACKET

1шт.

6

PW03M01958S407

RETAINER

1шт.

7

PW03M01958S408

PLUG

1шт.

8

PW03M01958S409

PLUG

1шт.

9

PW03M01958S411

PISTON

2шт.

10

PW03M01958S421

SPRING

2шт.

11

PW03M01958S451

CAP

1шт.

12

PW03M01958S471

SCREW

1шт.

13

PW03M01958S472

SCREW

2шт.

14

ZS32T30006

SELF-TAP SCREW

Cross

3шт.

15

ZS32T30008

SELF-TAP SCREW

Cross

1шт.

16

PW03M01959S482

SWITCH

1шт.

17

PW03M01958S852

COVER

1шт.

18

PW03M01958S853

CAP

2шт.

19

EN52S01001D6

HYD CONNECTOR

1шт.

20

EN52S01005D6

HOLDER

1шт.

21

PW03M01958S885

TERMINAL CONNECTOR

6шт.

22

PW03M01959S886

HOUSING

1шт.

23

PW03M01959S887

TERMINAL CONNECTOR

2шт.

24

PW03M01958S888

SEAL

6шт.

25

PW03M01958S889

TERMINAL CONNECTOR

1шт.

26

PW03M01958S891

TUBE

1шт.

27

PW03M01958S892

CLIP

2шт.
