(35.355.AK[06]) - GRIP, ASSY, NIBBLER & BREAKER, HAND CONTROL PROPORTIONAL + ROTARY

Запчасти Case CX55B (35.355.AK[06]) - GRIP, ASSY, NIBBLER & BREAKER, HAND CONTROL PROPORTIONAL + ROTARY (35) - HYDRAULIC SYSTEMS

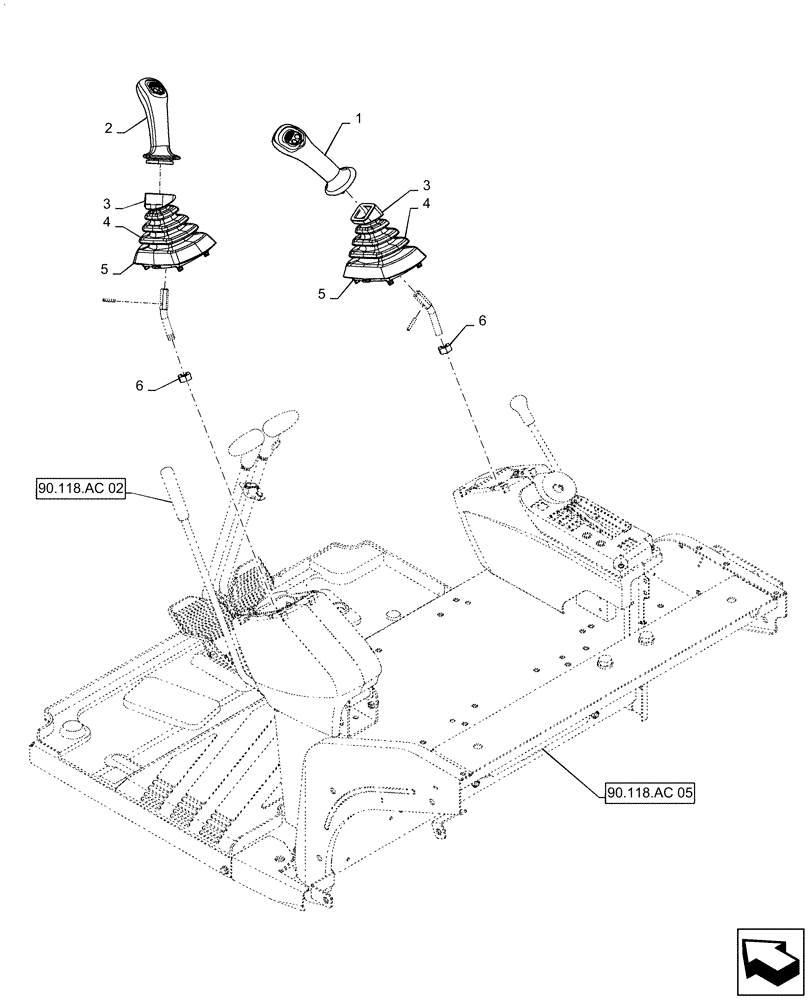

Схема запчастей Case CX55B - (35.355.AK[06]) - GRIP, ASSY, NIBBLER & BREAKER, HAND CONTROL PROPORTIONAL + ROTARY (35) - HYDRAULIC SYSTEMS
1
4
6
6
5
2
90.118.ac 05
4
3
90.118.ac 02
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Grip Assy, Nibbler and Breaker Hand Control Proportional + Rotary, PS03M01182F1

1шт.

1

PS03M01184F1

GRIP

Assy, Nibbler and Breaker Hand Control Proportional + Rotary, RH

1шт.

2

PS03M01185F1

GRIP

Assy, Nibbler and Breaker Hand Control Proportional + Rotary, LH

1шт.

3

YN03M01503P1

BOOT

2шт.

4

YN03M01505P1

BOOT

2шт.

5

YN03M01328P2

PLATE

2шт.

6

ZN18C14011

NUT

2шт.

Выбрано товаров: 7
