Запчасти Case CX55B (35.355.AH[04]) - PILOT VALVE, ASSY (35) - HYDRAULIC SYSTEMS

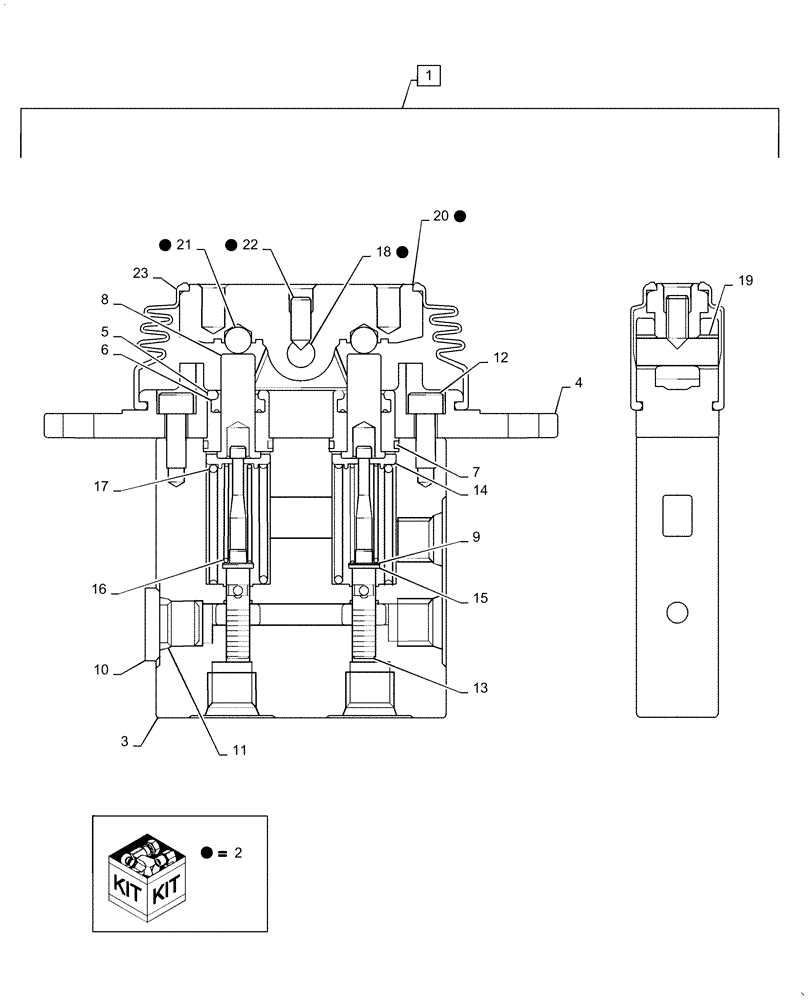

Схема запчастей Case CX55B - (35.355.AH[04]) - PILOT VALVE, ASSY (35) - HYDRAULIC SYSTEMS
8
1
4
2
2
2
22
17
12
9
16
2
5
7
14
18
11
2
10
21
15
19
6
13
20
3
23
2

Артикул

Название

Примечание

Количество

1

PB30V00002F2

PILOT VALVE

Incl 2 - 23

1шт.

2

PB30V00002R100

REPAIR KIT

Incl 18 (1), 20 (1), 22 (1), 21 (2)

1шт.

3

NSS

NOT SOLD SEPARAT

Case, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

5

PB30V00002S202

PLUG

2шт.

6

PM30V00019S210

PACKING

2шт.

7

2436U2946S9

O-RING,13.5mm ID x 20.5mm OD x 1mm Thk

2шт.

8

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

2шт.

9

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

2шт.

10

YW30V00001S157

PLUG

1шт.

11

ZD12P01100

O-RING

1шт.

12

ZS23C06016

SCREW,Hex Socket Head, M6 x 16mm

Cap

2шт.

13

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

2шт.

14

NSS

NOT SOLD SEPARAT

Seat, Incl in 1

2шт.

15

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

2шт.

16

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

2шт.

17

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

2шт.

18

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1, Incl in 2

1шт.

19

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

2шт.

20

NSS

NOT SOLD SEPARAT

Cam, Incl in 1, Incl in 2

1шт.

21

NSS

NOT SOLD SEPARAT

Ball, Incl in 1, Incl in 2

2шт.

22

NSS

NOT SOLD SEPARAT

Setscew, Incl in 1, Incl in 2

1шт.

23

NSS

NOT SOLD SEPARAT

Boot, Incl in 1

1шт.

Выбрано товаров: 23
