Запчасти Case CX55B (35.355.AD[01]) - CONTROL, LINES MULTI (PATTERN CHANGER) (35) - HYDRAULIC SYSTEMS

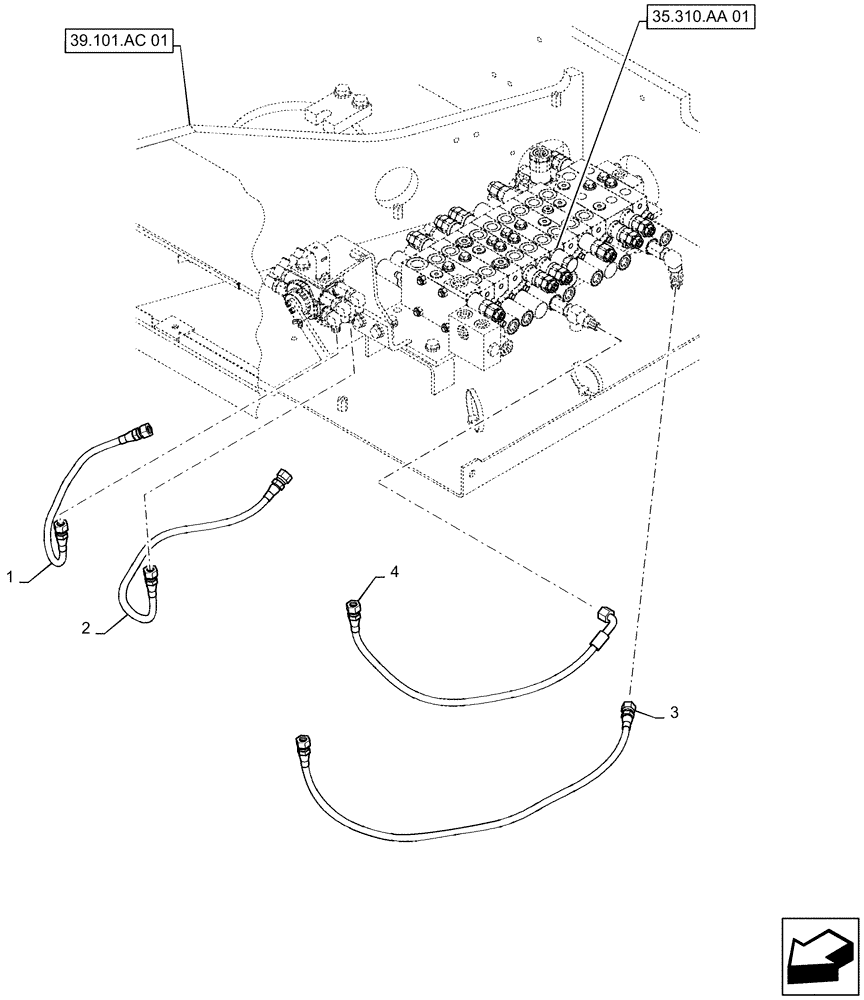

Схема запчастей Case CX55B - (35.355.AD[01]) - CONTROL, LINES MULTI (PATTERN CHANGER) (35) - HYDRAULIC SYSTEMS
2
1
35.310.aa 01
4
3
39.101.ac 01

Артикул

Название

Примечание

Количество

.

Control Lines, Multi, PS64H00007F1

1шт.

1

HX24L04054DX

HOSE ASSY.

Multi 1-C/V Pb7

1шт.

2

HX24L04070DX

HOSE

Multi 4-C/V Pb2

1шт.

3

HX24L04078DX

FLEXIBLE HOSE

Multi 2-C/V Pa2

1шт.

4

HX34L04058DX

HOSE

Multi 3-C/V Pb7

1шт.

Выбрано товаров: 5
