(35.353.AD[04]) - TRAVEL MOTOR & REDUCTION GEAR, ASSY

Запчасти Case CX55B (35.353.AD[04]) - TRAVEL MOTOR & REDUCTION GEAR, ASSY (35) - HYDRAULIC SYSTEMS

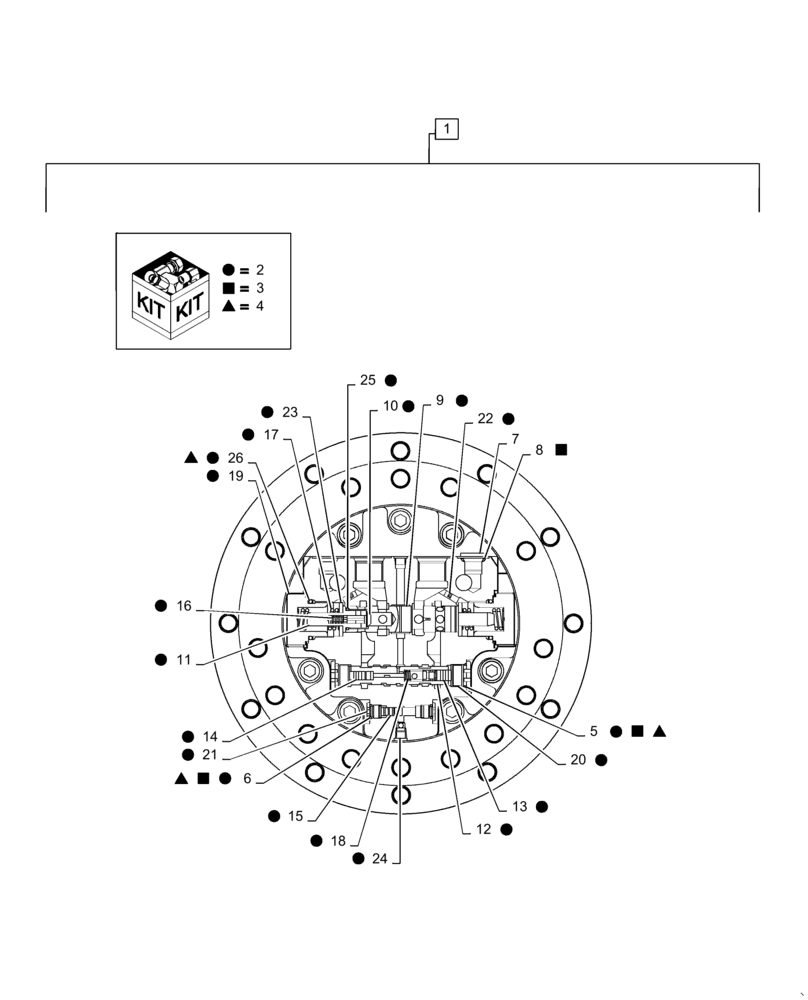

Схема запчастей Case CX55B - (35.353.AD[04]) - TRAVEL MOTOR & REDUCTION GEAR, ASSY (35) - HYDRAULIC SYSTEMS
22
3
2
2
2
2
2
2
11
2
21
10
4
17
14
19
2
1
2
3
23
2
2
8
13
2
2
15
18
3
3
2
2
2
3
15
7
12
5
2
2
25
4
4
26
2
6
16
9
2
20
24
2
4
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PS15V00003F1

MOTOR-PUMP

Assy, Propel, Incl 2 - 26

1шт.

2

PS15V00003R420

KIT

Repair, Incl 5(4), 6(3), 9 (1), 10 - 11(2), 12 - 15 (1), 16 - 17(2), 18 (1), 19 - 23(2), 24(10), 25 - 26(2)

1шт.

3

LE15V00006R460

KIT

Repair, Incl 6 (1), 8 (1), 5 (2)

1шт.

4

PS15V00003R470

KIT

Repair, Incl 5 (2), 6 (2), 26 (2)

1шт.

5

ZD12P01400

O-RING

Incl in 2

4шт.

6

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

Incl in 2

3шт.

7

PM22V00004S006

PLUG

1шт.

8

ZD12P01100

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.

10

NSS

NOT SOLD SEPARAT

Valve, Check, Incl in 2

2шт.

11

NSS

NOT SOLD SEPARAT

Spring Guide, Incl in 2

2шт.

12

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.

13

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.

14

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.

15

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.

16

NSS

NOT SOLD SEPARAT

Spring, Incl in 2

2шт.

17

NSS

NOT SOLD SEPARAT

Spring, Incl in 2

2шт.

18

NSS

NOT SOLD SEPARAT

Spring, Incl in 2

1шт.

19

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

20

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

21

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

22

NSS

NOT SOLD SEPARAT

Choke, Incl in 2

2шт.

23

NSS

NOT SOLD SEPARAT

Ring, Incl in 2

2шт.

24

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

10шт.

25

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2

2шт.

26

ZD12P02500

O-RING

Incl in 2

2шт.
