Запчасти Case CX55B (35.353.AD[03]) - TRAVEL MOTOR & REDUCTION GEAR, ASSY (35) - HYDRAULIC SYSTEMS

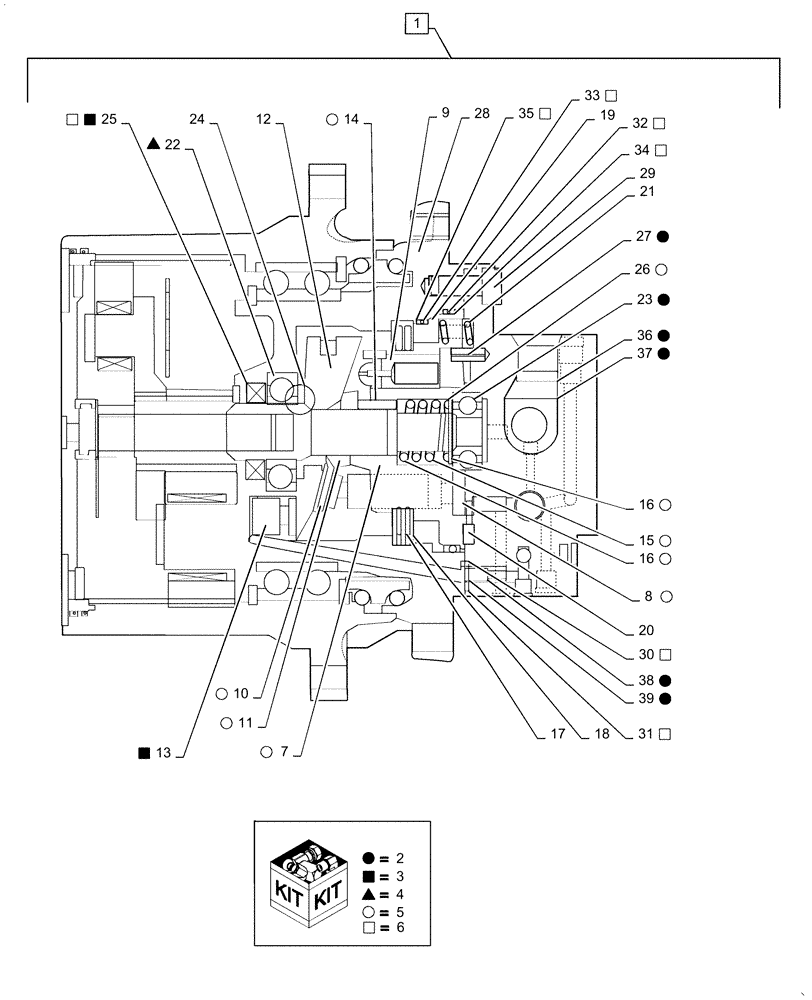

Схема запчастей Case CX55B - (35.353.AD[03]) - TRAVEL MOTOR & REDUCTION GEAR, ASSY (35) - HYDRAULIC SYSTEMS
16
5
5
6
3
37
6
5
4
29
6
25
2
18
34
22
38
5
24
23
2
13
26
4
4
10
36
5
9
5
7
19
28
27
1
30
5
6
2
3
14
6
5
39
2
16
35
6
5
15
8
5
3
2
32
6
12
32
2
2
17
11
20
33
6
21
5
6
31
2
3

Артикул

Название

Примечание

Количество

1

PS15V00003F1

MOTOR-PUMP

Assy, Propel, Incl 2 - 39

1шт.

2

PS15V00003R420

KIT

Repair, Incl 23 (1), 27 (1), 36 (1), 39 (1), 37 (2), 38 (2)

1шт.

3

PS15V00003R430

KIT

Repair, Incl 13 (1), 25 (1)

1шт.

4

LE15V00006R440

KIT

Repair, Incl 22 (1)

1шт.

5

PS15V00003R450

KIT

Repair, Incl 7 (1), 8 (1), 11 (1), 15 (1), 26 (1), 16 (2), 14 (3), 10 (10)

1шт.

6

PS15V00003R470

KIT

Repair, Incl 25 (1), 30 (1), 32 - 35 (1), 31 (2)

1шт.

7

NSS

NOT SOLD SEPARAT

Cylinder Barrel, Incl in 5

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Incl in 5

1шт.

9

NSS

NOT SOLD SEPARAT

Piston

9шт.

10

NSS

NOT SOLD SEPARAT

Shoe Holder, Incl in 5

1шт.

11

NSS

NOT SOLD SEPARAT

Barrel Holder, Incl in 5

1шт.

12

PS15V00003S210

PLATE

1шт.

13

NSS

NOT SOLD SEPARAT

Piston, Incl in 3

1шт.

14

NSS

NOT SOLD SEPARAT

Pin, Incl in 5

3шт.

15

NSS

NOT SOLD SEPARAT

Spring, Incl in 5

1шт.

16

NSS

NOT SOLD SEPARAT

Retainer, Incl in 5

2шт.

17

PY15V00011S215

PLATE

2шт.

18

PY15V00011S216

PLATE

3шт.

19

LE15V00006S217

PISTON

1шт.

20

LE15V00006S220

RETAINER

1шт.

21

PY15V00011S219

SPRING

6шт.

22

NSS

NOT SOLD SEPARAT

Bearing, Incl in 4

1шт.

23

NSS

NOT SOLD SEPARAT

Bearing, Incl in 2

1шт.

24

PH15V00002S236

BALL

2шт.

25

NSS

NOT SOLD SEPARAT

Oil Seal, Incl in 3, 6

1шт.

26

NSS

NOT SOLD SEPARAT

Ring, Snap, Incl in 5

1шт.

27

NSS

NOT SOLD SEPARAT

Pin, Spring, Incl in 2

1шт.

28

PY15V00002S248

SPLIT PIN/SAFETY PIN

1шт.

29

ZS28C10025

SCREW,Hex Socket Head, M10 x 25mm

Cap

7шт.

30

PS15V00003S228

O-RING

1шт.

31

ZD12P00700

O-RING,1.6mm Thk x 6.8mm ID, 90 Duro

2шт.

32

ZD12G12500

O-RING,124.40mm ID x 130.60mm OD x 3.10mm

1шт.

33

ZD12G11500

O-RING,114.40mm ID x 120.60mm OD x 3.10mm

1шт.

34

ZD75G12500

BACK-UP RING

1шт.

35

ZD75G11500

BACK-UP RING

1шт.

36

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

37

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

38

NSS

NOT SOLD SEPARAT

Choke, Incl in 2

2шт.

39

NSS

NOT SOLD SEPARAT

Choke, Incl in 2

1шт.

Выбрано товаров: 39
