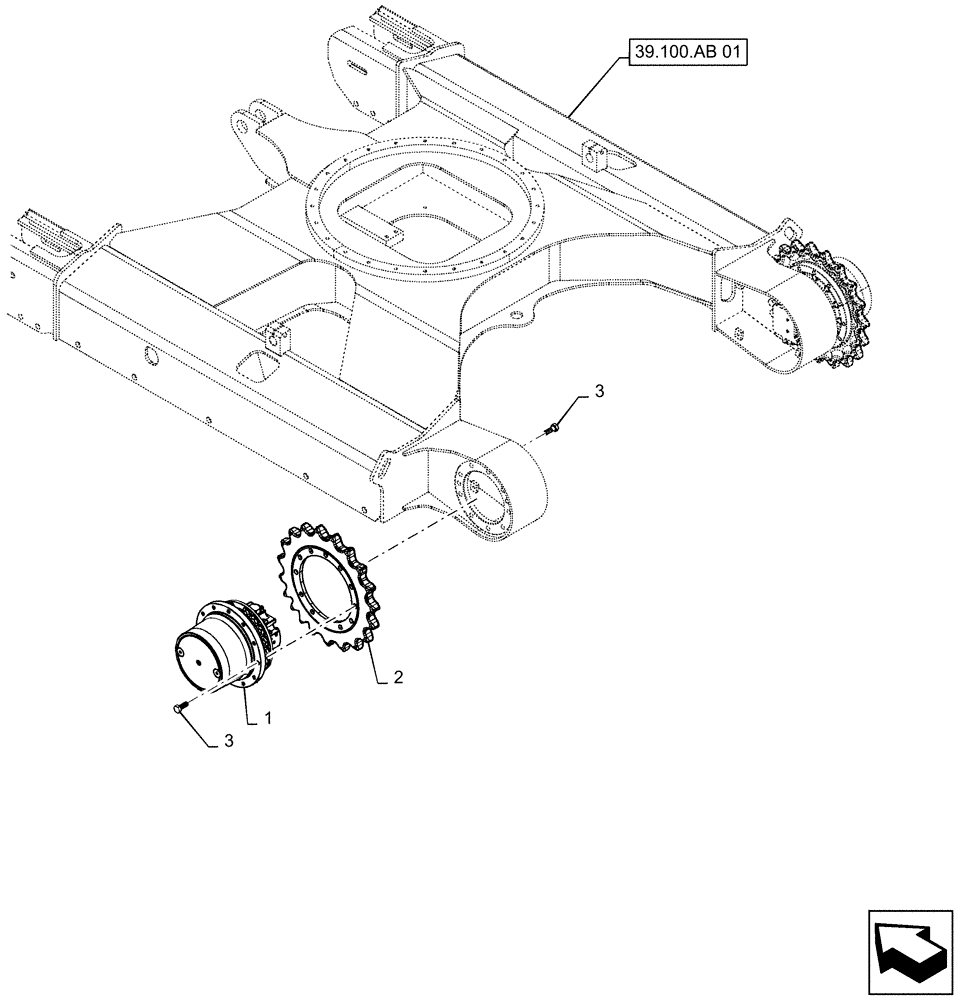

(35.353.AD[01]) - TRAVEL MOTOR & REDUCTION GEAR, MOUNTING

Запчасти Case CX55B (35.353.AD[01]) - TRAVEL MOTOR & REDUCTION GEAR, MOUNTING (35) - HYDRAULIC SYSTEMS

Схема запчастей Case CX55B - (35.353.AD[01]) - TRAVEL MOTOR & REDUCTION GEAR, MOUNTING (35) - HYDRAULIC SYSTEMS
1
2
3
39.100.ab 01
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Motor Install, Propel, PS53D00001F1

1шт.

1

PS15V00003F1

MOTOR-PUMP

Assy, Propel

2шт.

2

PY51D01006P1

SPROCKET,19 teeth

2шт.

3

ZS18C14035

SCREW,Hex, M14 x 35mm

Cap

44шт.
