Запчасти Case CX55B (35.352.AL[04]) - SWING REDUCTION UNIT, ASSY (35) - HYDRAULIC SYSTEMS

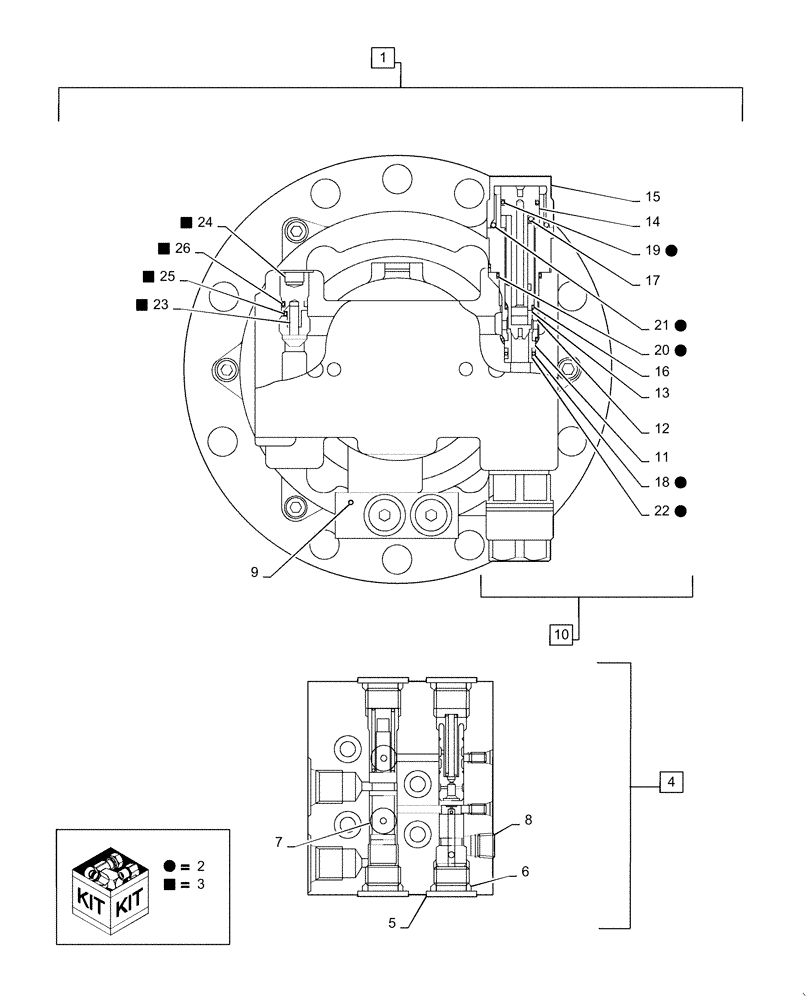

Схема запчастей Case CX55B - (35.352.AL[04]) - SWING REDUCTION UNIT, ASSY (35) - HYDRAULIC SYSTEMS
3
2
20
3
10
9
21
19
26
22
2
2
6
8
1
16
2
23
11
3
3
25
5
3
2
18
2
3
17
2
15
12
24
13
7
4
14

Артикул

Название

Примечание

Количество

1

PS15V00004F1

MOTOR-PUMP

Assy, Swing, Incl 2 - 26

1шт.

2

PY22V00009R100

REPAIR KIT

Incl 18 (1), 19 (1), 20 (1), 21 (1), 22 (2)

1шт.

3

PY15V00014R630

REPAIR KIT

Incl 23 (2), 24 (2),25 (2), 26 (2)

1шт.

4

PY64H00003F1

HYDRAULIC VALVE

Assy, Incl 5 - 8

1шт.

5

PM22V00004S006

PLUG

4шт.

6

ZD12P01100

O-RING

4шт.

7

ZD12P00700

O-RING,1.6mm Thk x 6.8mm ID, 90 Duro

2шт.

8

PY64H00003S512

PLUG

1шт.

9

ZS23C06015

SCREW,Hex Socket Head, M6 x 15mm

Cap

4шт.

10

PY22V00016F1

VALVE PRESSURE RELIE

Incl 11 - 22

2шт.

11

NSS

NOT SOLD SEPARAT

Seat, Incl in 10

1шт.

12

NSS

NOT SOLD SEPARAT

Retainer, Incl in 10

1шт.

13

NSS

NOT SOLD SEPARAT

Poppet, Incl in 10

1шт.

14

NSS

NOT SOLD SEPARAT

Piston, Incl in 10

1шт.

15

NSS

NOT SOLD SEPARAT

Cap, Incl in 10

1шт.

16

NSS

NOT SOLD SEPARAT

Spring, Incl in 10

1шт.

17

NSS

NOT SOLD SEPARAT

Spacer, Incl in 10

1шт.

18

ZD12P01400

O-RING

1шт.

19

ZD12P01800

O-RING

1шт.

20

ZD12P02200

O-RING

1шт.

21

ZD12P02800

O-RING

1шт.

22

ZD85P01400

RING

Back-Up

2шт.

23

NSS

NOT SOLD SEPARAT

Check Valve, Incl in 3

2шт.

24

NSS

NOT SOLD SEPARAT

Plug, Incl in 3

2шт.

25

NSS

NOT SOLD SEPARAT

Spring, Incl in 3

2шт.

26

ZD12P01100

O-RING

2шт.

Выбрано товаров: 26
