Запчасти Case CX55B (35.352.AL[03]) - SWING REDUCTION UNIT, ASSY (35) - HYDRAULIC SYSTEMS

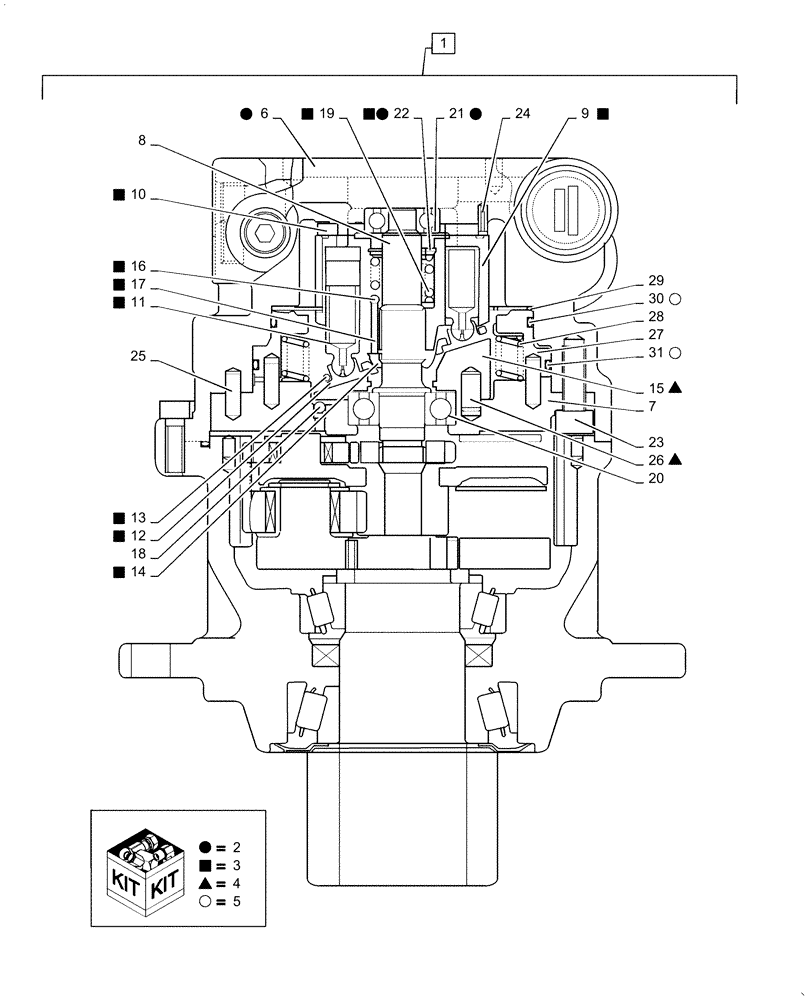

Схема запчастей Case CX55B - (35.352.AL[03]) - SWING REDUCTION UNIT, ASSY (35) - HYDRAULIC SYSTEMS
3
21
31
12
3
14
3
5
25
2
6
29
4
2
3
22
4
18
13
3
3
10
1
3
5
3
11
3
4
9
3
4
2
2
30
2
17
3
20
5
28
27
8
19
23
26
7
16
5
15
24
3

Артикул

Название

Примечание

Количество

1

PS15V00004F1

MOTOR-PUMP

Assy, Swing, Incl 2 - 31

1шт.

2

PY15V00014R630

REPAIR KIT

Repair, Incl 6 (1), 21 (1), 22 (1)

1шт.

3

PY15V00014R640

REPAIR KIT

Repair, Incl 9 (1), 10 (1), 13 (1), 14 (1), 19 (1), 22 (1), 16 (2), 17 (3), 11 (9), 12 (9)

1шт.

4

PU15V00019R430

KIT

Repair, Incl 15 (1), 26 (1)

1шт.

5

PY15V00014R660

REPAIR KIT

Repair, Incl 30 (1), 31 (1)

1шт.

6

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Block Cylinder, Incl in 3

1шт.

10

NSS

NOT SOLD SEPARAT

Valve, Plate, Incl in 3

1шт.

11

NSS

NOT SOLD SEPARAT

Piston, Incl in 3

9шт.

12

NSS

NOT SOLD SEPARAT

Shoe, Incl in 3

9шт.

13

NSS

NOT SOLD SEPARAT

Retainer, Shoe, Incl in 3

1шт.

14

NSS

NOT SOLD SEPARAT

Barrel Holder, Incl in 3

1шт.

15

NSS

NOT SOLD SEPARAT

Plate, Shoe, Incl in 4

1шт.

16

NSS

NOT SOLD SEPARAT

Retainer, Incl in 3

2шт.

17

NSS

NOT SOLD SEPARAT

Pin, Incl in 3

3шт.

18

PM15V00008S014

FILTER

1шт.

19

NSS

NOT SOLD SEPARAT

Spring, Incl in 3

1шт.

20

PY15V00012S216

BALL BEARING

1шт.

21

PR15V00004S074

BEARING

Ball

1шт.

22

ZR26X02800

RING

Snap

1шт.

23

ZS23C10035

SCREW,Hex Socket Head, M10 x 35mm

Cap

8шт.

24

ZP26D05012

PIN

Spring

1шт.

25

PA15V01002S321

PIN

3шт.

26

NSS

NOT SOLD SEPARAT

Pin, Incl in 4

1шт.

27

NSS

NOT SOLD SEPARAT

Piston Brake, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

30

ZD12G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

31

ZD12G12500

O-RING,124.40mm ID x 130.60mm OD x 3.10mm

1шт.

Выбрано товаров: 31
