Запчасти Case CX55B (35.352.AL[02]) - SWING REDUCTION UNIT, ASSY (35) - HYDRAULIC SYSTEMS

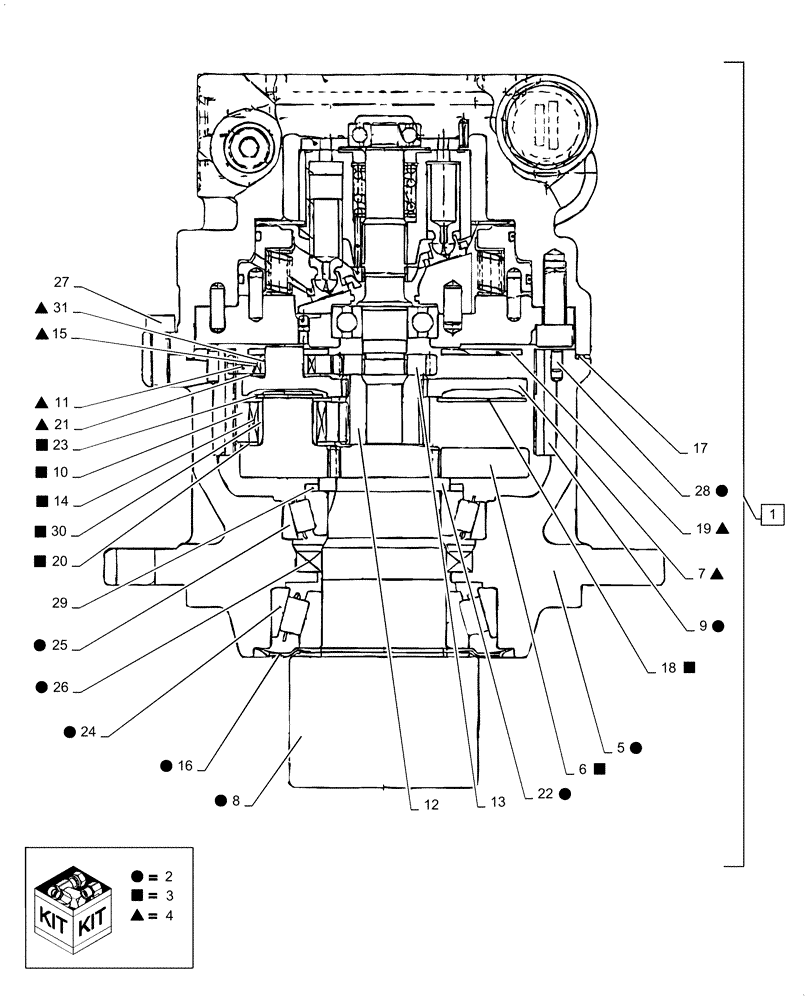

Схема запчастей Case CX55B - (35.352.AL[02]) - SWING REDUCTION UNIT, ASSY (35) - HYDRAULIC SYSTEMS
17
21
13
14
9
29
20
2
7
10
2
18
16
28
20
30
31
11
25
6
19
8
23
5
24
26
22
27
15
3
12
4
1
23

Артикул

Название

Примечание

Количество

1

PS15V00004F1

MOTOR-PUMP

Motor Assy, Swing, Incl 2 - 31

1шт.

2

PS15V00001R600

KIT

Repair Kit, Incl 5 (1), 8 (1), 9 (1), 16 (1), 24 (1), 25 (1), 26 (1), 22 (2), 28 (4)

1шт.

3

PY15V00014R610

REPAIR KIT

Repair Kit, Incl 6 (1), 18 (1), 10 (4), 20 (4), 23 (4), 30 (4), 14 (92)

1шт.

4

PY15V00014R620

REPAIR KIT

Repair Kit, Incl 7 (1), 19 (1), 11 (3), 21 (3), 31 (3), 15 (72)

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

6

NSS

NOT SOLD SEPARAT

Carrier, Incl in 3

1шт.

7

NSS

NOT SOLD SEPARAT

Carrier, Incl in 4

1шт.

8

NSS

NOT SOLD SEPARAT

Shaft Pinion, Incl in 2

1шт.

9

NSS

NOT SOLD SEPARAT

Internal Gear, Incl in 2

1шт.

10

NSS

NOT SOLD SEPARAT

Gear, Incl in 3

4шт.

11

NSS

NOT SOLD SEPARAT

Gear, Incl in 4

3шт.

12

PY15V00014S108

GEAR

1шт.

13

PY15V00014S109

GEAR

1шт.

14

NSS

NOT SOLD SEPARAT

Needle, Incl in 3

92шт.

15

NSS

NOT SOLD SEPARAT

Needle, Incl in 4

72шт.

16

NSS

NOT SOLD SEPARAT

Ring, Incl in 2

1шт.

17

PY15V00014S114

O-RING

1шт.

18

NSS

NOT SOLD SEPARAT

Plate, Incl in 3

1шт.

19

NSS

NOT SOLD SEPARAT

Plate, Incl in 4

1шт.

20

NSS

NOT SOLD SEPARAT

Washer, Thrust, Incl in 3

4шт.

21

NSS

NOT SOLD SEPARAT

Washer, Thrust, Incl in 4

3шт.

22

NSS

NOT SOLD SEPARAT

Collar, Incl in 2

2шт.

23

PY15V00014S120

RING

4шт.

24

NSS

NOT SOLD SEPARAT

Bearing, Incl in 2

1шт.

25

NSS

NOT SOLD SEPARAT

Bearing, Incl in 2

1шт.

26

NSS

NOT SOLD SEPARAT

Oil Seal, Incl in 2

1шт.

27

ZS23C08025

SCREW,Hex Socket Head, M8 x 25mm

Cap

6шт.

28

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

4шт.

29

PY15V00012S136

RING

1шт.

30

NSS

NOT SOLD SEPARAT

Ring, Incl in 3

4шт.

31

NSS

NOT SOLD SEPARAT

Ring, Incl in 4

3шт.

Выбрано товаров: 31
