(35.352.AL[01]) - SWING REDUCTION UNIT, MOUNTING

Запчасти Case CX55B (35.352.AL[01]) - SWING REDUCTION UNIT, MOUNTING (35) - HYDRAULIC SYSTEMS

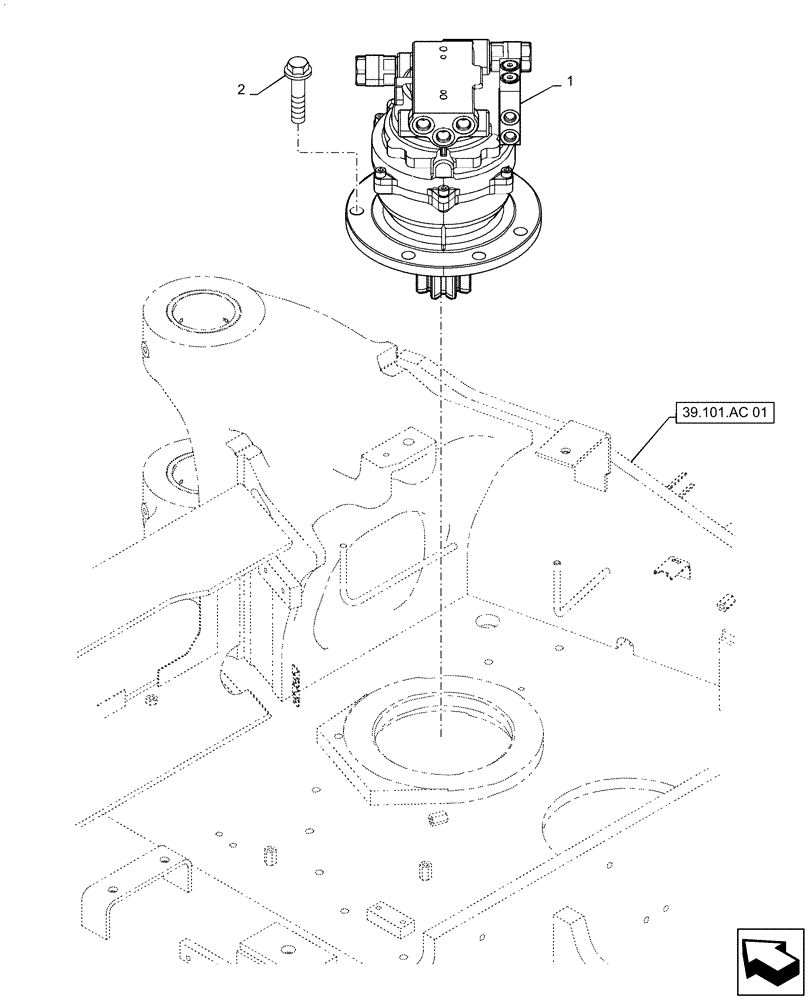

Схема запчастей Case CX55B - (35.352.AL[01]) - SWING REDUCTION UNIT, MOUNTING (35) - HYDRAULIC SYSTEMS
39.101.ac 01
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Motor Install, Swing, PS32W00001F1

1шт.

1

PS15V00004F1

MOTOR-PUMP

Assy, Swing

1шт.

2

HS18C16040G1

SCREW

Cap

8шт.
