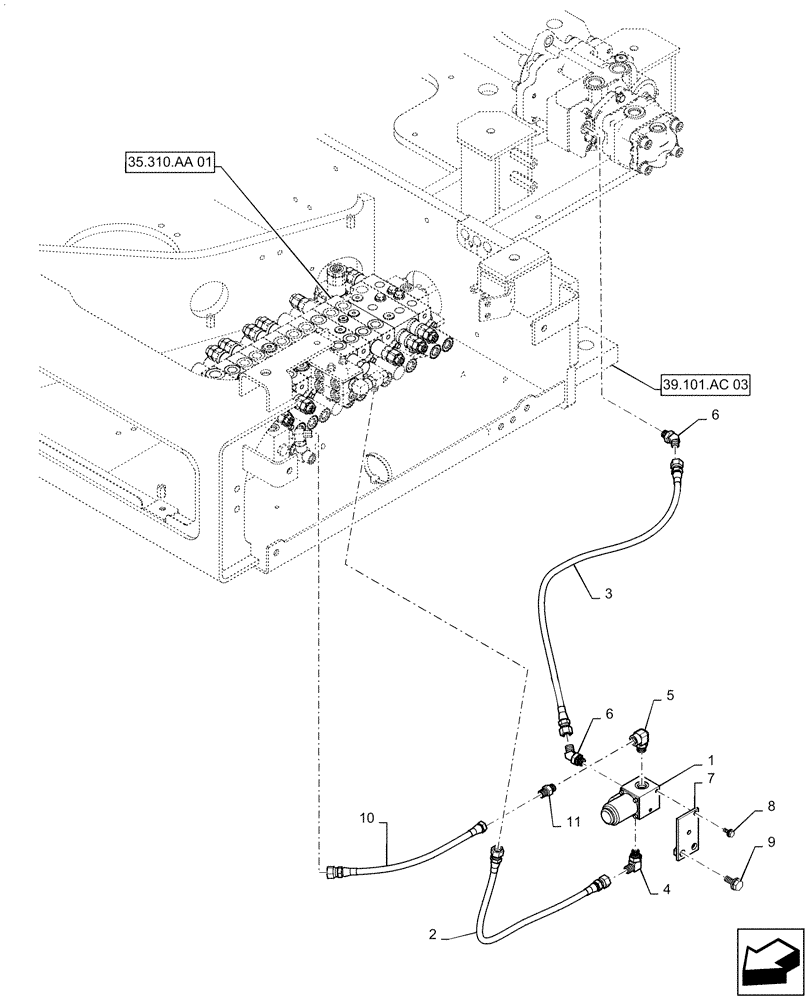

Запчасти Case CX55B (35.322.AW[09]) - CONTROL, LINES, VALVE, CAB (35) - HYDRAULIC SYSTEMS

.

Control Lines, Valve, PS64H00048F1

1шт.

1

YJ35V00004F2

SOLENOID VALVE

(Used for Power Shift (Cooler Spec))

1шт.

2

HX24L04052DX

FLEXIBLE HOSE

S/V T - Block T

1шт.

3

HX24L04066DX

FLEXIBLE HOSE

S/V A - Pump Z

1шт.

4

HH35S04004G1

90 ELBOW

1шт.

5

2444Z2894

90 ELBOW

1шт.

6

HH45S04004G1

45 ELBOW

2шт.

7

PS64H01007P1

BRACKET

1шт.

8

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

2шт.

9

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.

10

HX24L04038DX

HOSE

S/V P - C/V Pp

1шт.

11

HH25S04004G3

HYD CONNECTOR

1шт.
