Запчасти Case CX55B (35.322.AW[02]) - CONTROL, LINES, VALVE (35) - HYDRAULIC SYSTEMS

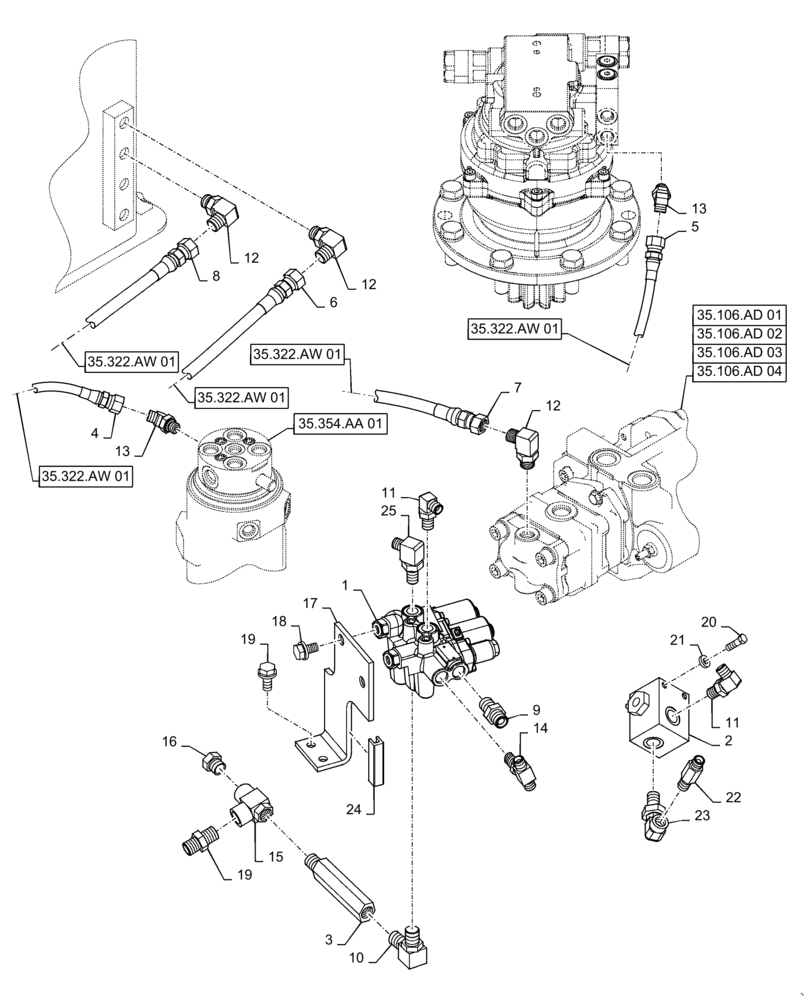

Схема запчастей Case CX55B - (35.322.AW[02]) - CONTROL, LINES, VALVE (35) - HYDRAULIC SYSTEMS
22
19
11
35.106.ad 01
35.354.aa 01
2
18
12
21
6
13
8
5
19
35.106.ad 04
3
11
20
35.322.aw 01
7
17
14
35.322.aw 01
15
10
12
35.106.ad 02
1
25
24
12
4
35.322.aw 01
35.322.aw 01
35.322.aw 01
13
16
23
9
35.106.ad 03

Артикул

Название

Примечание

Количество

.

Control Lines, Valve, PS64H00014F1

1шт.

1

LE35V00003F1

SOLENOID VALVE

Assy, (Use for Lever Lock, 2-speed Select)

1шт.

2

PH26V00001F1

VALVE

Shuttle

1шт.

3

YN50V00020F1

HYDRAULIC OIL FILTER

Inline

1шт.

4

HX24L04062DX

FLEXIBLE HOSE

S/J P-S/V A

1шт.

5

HX24L04100DX

HOSE ASSY.

S/M PP-SHUT/V D

1шт.

6

HX24L06155DX

HOSE

S/V T-Tank

1шт.

7

HX24L06160DX

HOSE

PUMP P4-S/V C

1шт.

8

HX24L06185DX

HOSE

Block T-Tank

1шт.

9

HH25S06006G1

HYD CONNECTOR

2шт.

10

2444Z3279

90 ELBOW

1шт.

11

HH35S04004G1

90 ELBOW

2шт.

12

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

3шт.

13

HH45S04004G1

45 ELBOW

2шт.

14

HH55L04004G2

TEE

1шт.

15

PW64H01011P1

TEE

1шт.

16

ZE72X04000

PLUG

1шт.

17

PS64H01033P1

BRACKET

1шт.

18

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

19

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.

20

ZS18C06065

SCREW,Hex, M6 x 65mm

Cap

2шт.

21

ZW16H06000

WASHER

2шт.

22

PU64H01002P1

HYD CONNECTOR

1шт.

23

2444Z2894

90 ELBOW

1шт.

24

PF64H01004DE

RUBBER STRIP

1шт.

25

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

1шт.

Выбрано товаров: 26
