Запчасти Case CX55B (35.322.AW[01]) - CONTROL, LINES, VALVE (35) - HYDRAULIC SYSTEMS

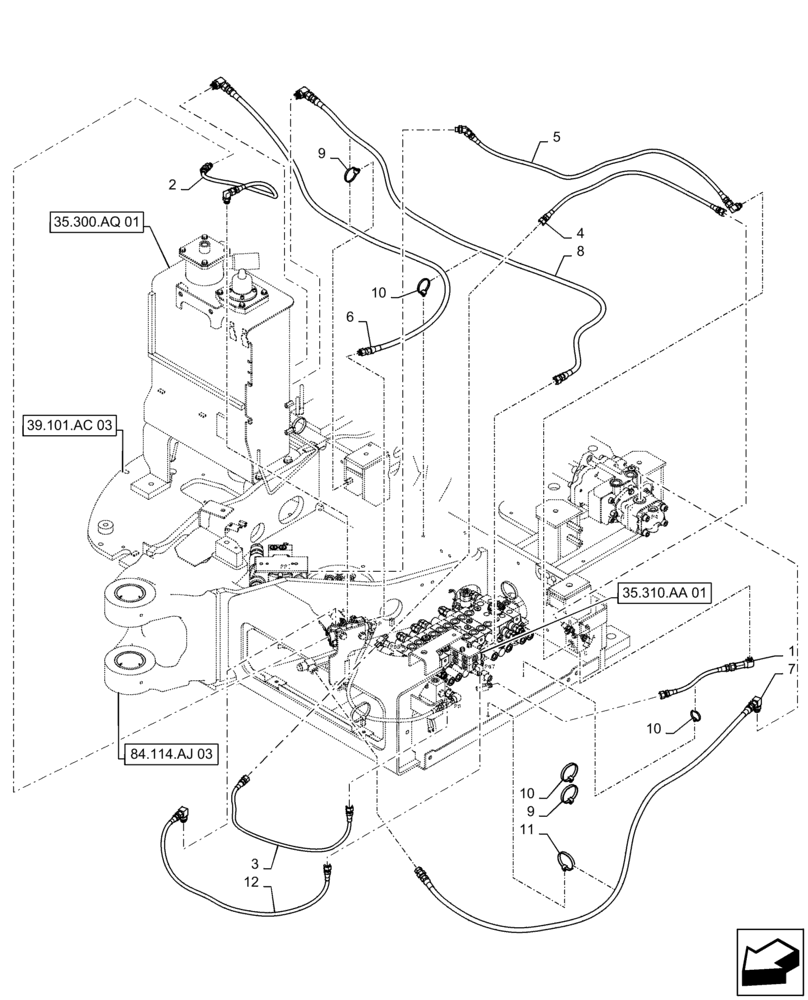

Схема запчастей Case CX55B - (35.322.AW[01]) - CONTROL, LINES, VALVE (35) - HYDRAULIC SYSTEMS
3
11
12
8
10
4
5
10
39.101.ac 03
7
6
10
2
84.114.aj 03
35.310.aa 01
9
9
35.300.aq 01
1

Артикул

Название

Примечание

Количество

.

Control Lines, Valve, PS64H00014F1

1шт.

1

HX24L04030DX

HOSE

C/V Pa7-SHUT/V C

1шт.

2

HX24L04062DX

FLEXIBLE HOSE

S/J P-S/V A

1шт.

3

HX24L04076DX

FLEXIBLE HOSE

C/V Pp-S/V P

1шт.

4

HX24L04078DX

FLEXIBLE HOSE

C/V Pb9-SHUT/V B

1шт.

5

HX24L04100DX

HOSE ASSY.

S/M PP-SHUT/V D

1шт.

6

HX24L06155DX

HOSE

S/V T-Tank

1шт.

7

HX24L06160DX

HOSE

PUMP P4-S/V C

1шт.

8

HX24L06185DX

HOSE

Block T-Tank

1шт.

9

YN13E01375P1

CLIP,M8 x 8.20mm Shank

4шт.

10

PY01P01043D5

CABLE TIE,301mm L

5шт.

11

PY01P01043D8

CABLE TIE,102mm L

1шт.

12

HX24L04088DX

HOSE ASSY.

S/V B-PT P

1шт.

Выбрано товаров: 13
