(35.310.AJ[02]) - PILOT VALVE (TRAVEL ALARM)

Запчасти Case CX55B (35.310.AJ[02]) - PILOT VALVE (TRAVEL ALARM) (35) - HYDRAULIC SYSTEMS

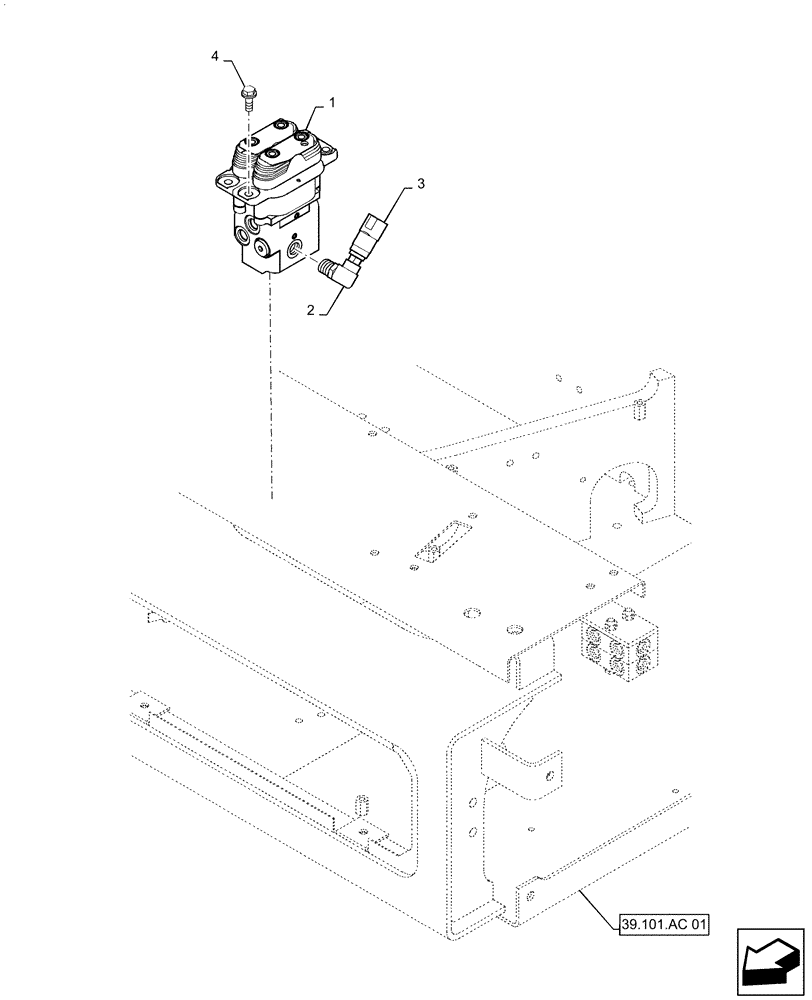

Схема запчастей Case CX55B - (35.310.AJ[02]) - PILOT VALVE (TRAVEL ALARM) (35) - HYDRAULIC SYSTEMS
4
1
39.101.ac 01
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Control Lines, Propel, Travel Alarm, PS62H00005F1

1шт.

1

PS30V00006F1

PILOT VALVE

Travel Alarm

1шт.

2

PS62H01001P1

90 ELBOW

2шт.

3

PS50S00001F1

PRESSURE SWITCH

(Used for Hyd Low Pressure) Travel Alarm

2шт.

4

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

4шт.
