(35.310.AE[01]) - CONTROL, LINES, BLOCK, NIBBLER & BREAKER OR ROTARY

Запчасти Case CX55B (35.310.AE[01]) - CONTROL, LINES, BLOCK, NIBBLER & BREAKER OR ROTARY (35) - HYDRAULIC SYSTEMS

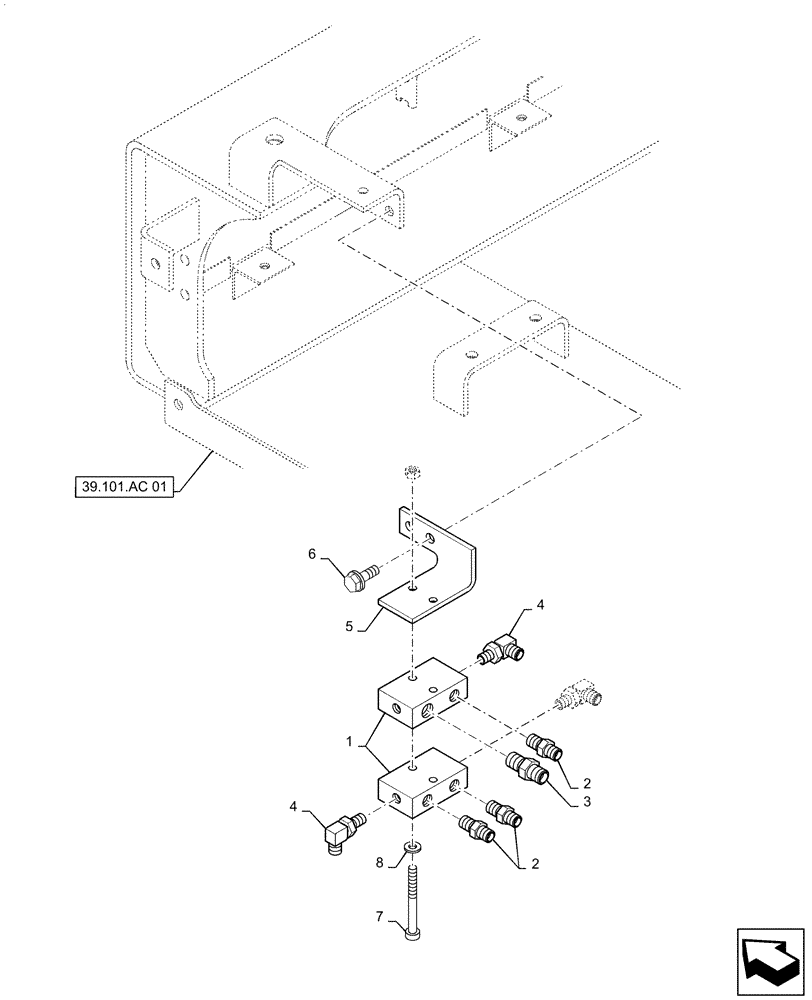

Схема запчастей Case CX55B - (35.310.AE[01]) - CONTROL, LINES, BLOCK, NIBBLER & BREAKER OR ROTARY (35) - HYDRAULIC SYSTEMS
3
6
4
5
39.101.ac 01
7
4
2
8
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Control Lines, Block, PS64H00020F1

1шт.

1

PS64H01003P1

BLOCK

2шт.

2

HH25S04004G1

HYD CONNECTOR

3шт.

3

HH25S06004G3

HYD CONNECTOR

1шт.

4

HH35S04004G1

90 ELBOW

3шт.

5

PS64H01004P1

BRACKET

1шт.

6

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.

7

ZS18C08070

SCREW,Hex, M8 x 70mm

2шт.

8

ZW16H08000

WASHER

2шт.

Выбрано товаров: 9
