Запчасти Case CX55B (35.310.AA[10]) - CONTROL VALVE ASSY, ROTARY / ANGLE DOZER (35) - HYDRAULIC SYSTEMS

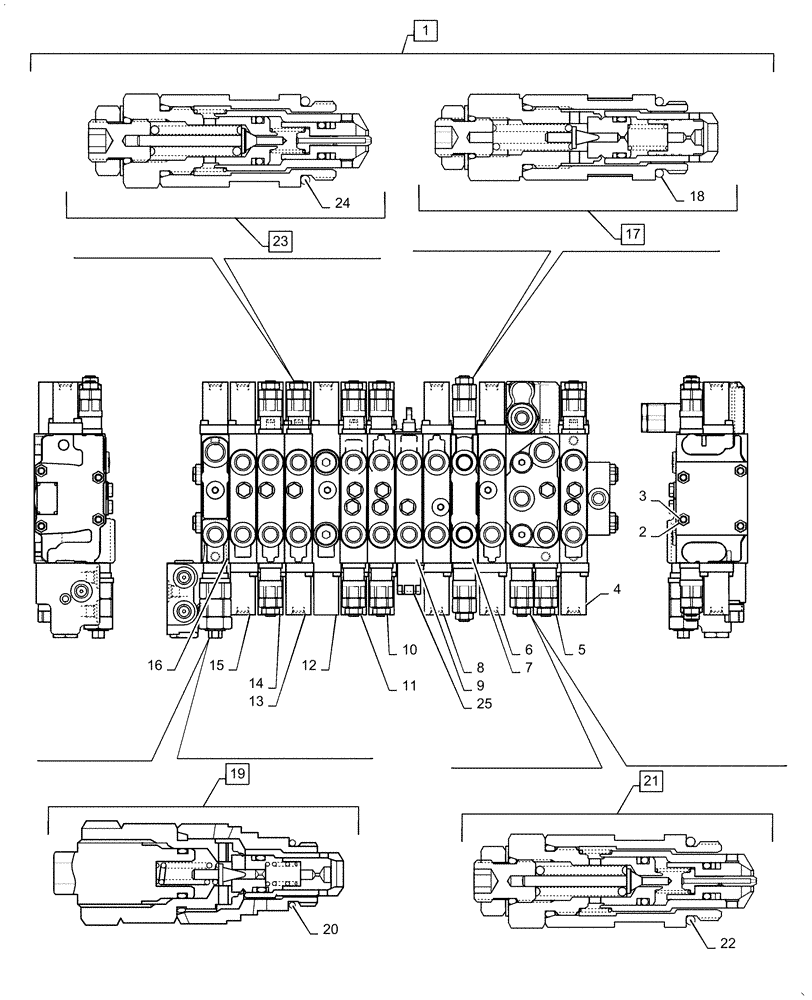

Схема запчастей Case CX55B - (35.310.AA[10]) - CONTROL VALVE ASSY, ROTARY / ANGLE DOZER (35) - HYDRAULIC SYSTEMS
1
11
24
25
8
3
16
23
19
10
18
14
2
13
4
9
21
20
15
12
17
6
7
22
5

Артикул

Название

Примечание

Количество

1

PS30V00004F1

CONTROL VALVE

Assy, Rotary / Angle Dozer, Incl 2 - 25

1шт.

2

PS30V00001S001

TIE-ROD

4шт.

3

ZN18C08007

NUT

8шт.

4

PS30V00007F1

CONTROL VALVE

Section Assy, Bucket

1шт.

5

PS30V00008F1

CONTROL VALVE

Section Assy, Boom

1шт.

6

PS30V00009F1

CONTROL VALVE

Section Assy, Travel Left

1шт.

7

PS30V00010F1

CONTROL VALVE

Section Assy, Supply

1шт.

8

PS30V00011F1

CONTROL VALVE

Section Assy, Travel Right

1шт.

9

PS30V00012F1

CONTROL VALVE

Section Assy, Boom Swing

1шт.

10

PS30V00013F1

CONTROL VALVE

Section Assy, Service

1шт.

11

PS30V00014F1

SPOOL

Section Assy, Arm

1шт.

12

PS30V00015F1

SPOOL

Section Assy, Arm Confluence

1шт.

13

PS30V00016F1

SPOOL

Section Assy, Dozer

1шт.

14

PS30V00020F1

SPOOL

Section Assy, Rotary, Angle Dozer

1шт.

15

PS30V00017F1

SPOOL

Section Assy, Slewing

1шт.

16

PS30V00018F1

SPOOL

Section Assy, Travel Independence

1шт.

17

PH22V00014F4

REPAIR KIT

Relief Valve, Incl 19

2шт.

18

2436U388S25

O-RING

1шт.

19

PY22V00017F2

REPAIR KIT

Relief Valve, Incl 21

1шт.

20

2436U388S25

O-RING

1шт.

21

PY22V00010F3

REPAIR KIT

Relief Valve, Incl 23

2шт.

22

2436U388S25

O-RING

1шт.

23

PY22V00010F4

REPAIR KIT

Relief Valve, Incl 25

6шт.

24

2436U388S25

O-RING

1шт.

25

PH22V00013F1

VALVE

Assy, Antivoid

1шт.

Выбрано товаров: 25
