(35.310.AA[09]) - CONTROL VALVE INSTALL, (ROTARY/ANGLE DOZER)

Запчасти Case CX55B (35.310.AA[09]) - CONTROL VALVE INSTALL, (ROTARY/ANGLE DOZER) (35) - HYDRAULIC SYSTEMS

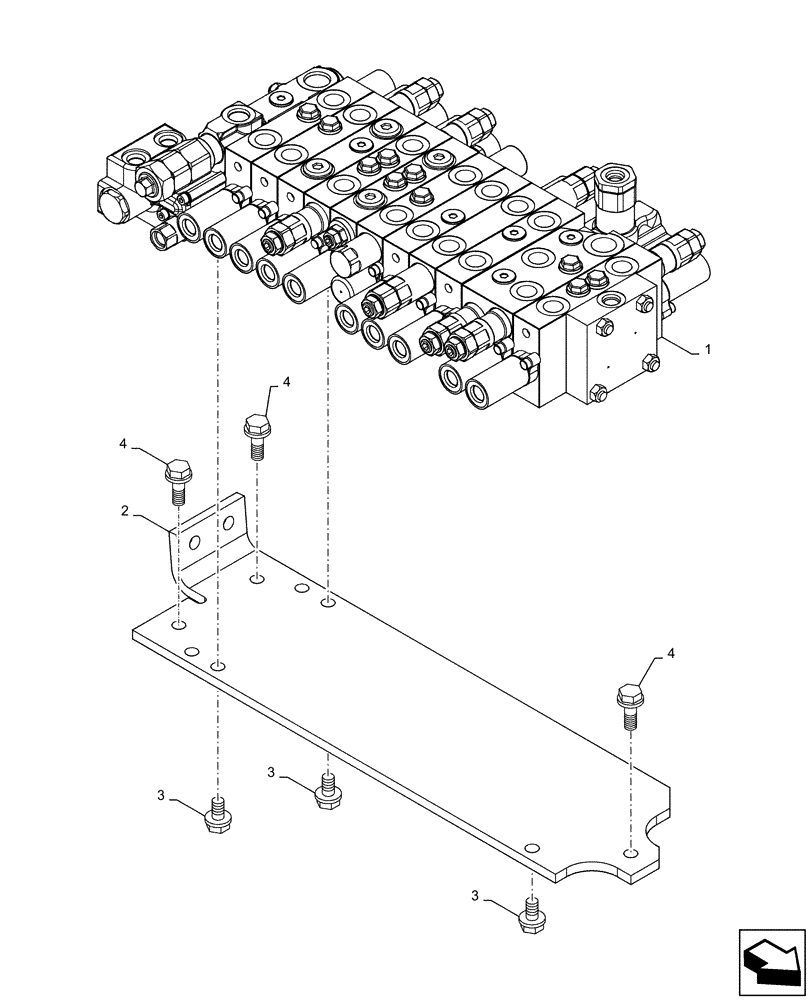

Схема запчастей Case CX55B - (35.310.AA[09]) - CONTROL VALVE INSTALL, (ROTARY/ANGLE DOZER) (35) - HYDRAULIC SYSTEMS
1
3
3
4
4
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Valve Install, Rotary/Angle Dozer, PS64H00039F1

1шт.

1

PS30V00004F1

CONTROL VALVE

Assy, Rotary/Angle Dozer

1шт.

2

PS64H01029P2

BRACKET

1шт.

3

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

3шт.

4

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

3шт.
